Description

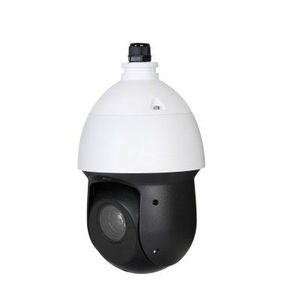

Camera image sensor: 1/2. 8” STARVIS CMOS ram/ROM: 1024M/128M s/N ratio: more than 50dB ir distance: distance up to 100M (328ft) ir on/off control: auto/manual ir LEDs: 6 lens focal length: 4. 8Mm~120mm max. Aperture: F1. 6 ~ F4. 4 angle of view: H: 59. 2° ~ 2. 4° focus control: auto/manual close focus distance: 100mm~ 1000mm ptz pan/tilt range: pan: 0° ~ 360° endless; tilt: -15° ~ 90°, Auto flip 180° presets: 300 ptz mode: 5 pattern, 8 Tour, auto pan, auto scan speed setup: human-oriented focal length/ speed adaptation power up action: auto restore to previous PTZ and lens status after power failure idle motion: activate preset/ scan/ Tour/ pattern if there is no command in the specified period protocol: dh-sd intelligence ivs: tripwire, intrusion, abandoned/missing, face detection network protocol: ipv4/IPv6, http, HTTPS, SSL, TCP/IP, UDP/supplier (Dahua) (IP), up NP, icmp, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPoE, DDNS, FTP, IP filter, QoS, bonjour, 802. 1x interoperability: ONVIF, PSIA, CGI streaming method: unicast/ multicast max. User Access: 20 Users edge storage: NAS (network attached storage), local PC for instant recording, Micro SD card 128GB web viewer: IE, Chrome, Firefox, Safari smart phone: iOS, Android electrical power supply: DC 12V/3A, poe+(802. 3at) power consumption: 13W, 20W (IR on)
