Description
See Related Products:
GDEW1248C63 : https://www.amazon.com/dp/B07N7V79DD?ref=myi_title_dp
GDEW1248Z95: https://www.amazon.com/dp/B07JG1TN5B?ref=myi_title_dp
GDEW1248T3: https://www.amazon.com/dp/B07HQMZHKZ?ref=myi_title_dp
Demo kit: https://www.amazon.com/dp/B07J58GQX5?ref=myi_title_dp
Connection board: https://www.amazon.com/dp/B07J9YDL28?ref=myi_title_dp
Introduction

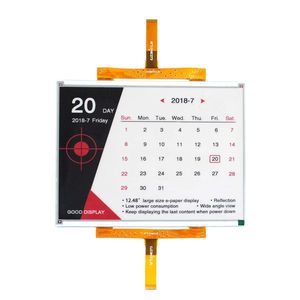

This is an 12.48 inch red E ink E paper display panel with two FPC interfaces, 1304*984 resolution. An integrated circuit contains gate buffer, source buffer, interface, timing control logic, oscillator, DC-DC, SRAM, LUT, VCOM, and border are supplied with each panel.
In view of so many advantages: ultra low power consumption, near 180 degree view angle, readable under sunlight, GDEW1248Z95 is a very good choice for applications like display board in supermarket, industrial application and other related products.
Features
Two FPC interface, both have 30 pins
Ultra low power consumption, basically power is only required for refreshing.
SPI interface, for connecting with controller boards
Come with helpful development resources and manual (STM32 platform )
Main parameters
Part number: GDEW1248Z95
Type: Matrix
Resolution: 1304 * 984
Size of the scheme (mm): 261.5 * 211 * 1.18
Size of the work (mm): 252.976 * 190.896
Pitch Pixel (mm): 0.194 * 0.194
Operating temperature: 0 ℃ ~ + 40 ℃
Storage temperature: -25 ℃ ~ + 60 ℃
Connector: Two FPC interfaces
Color: Black, White, Red
Maximum gray scale: 2
Packing volume: 6KG
El precio anterior incluye:
1) 12.48 inch 1304*984 low power consumption epaper display GDEW1248Z95 * 1pc
2) Helpful resources and manual * 1pc (If you need documents, please contact customer service)
GDEW1248C63 : https://www.amazon.com/dp/B07N7V79DD?ref=myi_title_dp
GDEW1248Z95: https://www.amazon.com/dp/B07JG1TN5B?ref=myi_title_dp
GDEW1248T3: https://www.amazon.com/dp/B07HQMZHKZ?ref=myi_title_dp
Demo kit: https://www.amazon.com/dp/B07J58GQX5?ref=myi_title_dp
Connection board: https://www.amazon.com/dp/B07J9YDL28?ref=myi_title_dp
Introduction
This is an 12.48 inch red E ink E paper display panel with two FPC interfaces, 1304*984 resolution. An integrated circuit contains gate buffer, source buffer, interface, timing control logic, oscillator, DC-DC, SRAM, LUT, VCOM, and border are supplied with each panel.
In view of so many advantages: ultra low power consumption, near 180 degree view angle, readable under sunlight, GDEW1248Z95 is a very good choice for applications like display board in supermarket, industrial application and other related products.
Features
Two FPC interface, both have 30 pins
Ultra low power consumption, basically power is only required for refreshing.
SPI interface, for connecting with controller boards
Come with helpful development resources and manual (STM32 platform )
Main parameters
Part number: GDEW1248Z95
Type: Matrix
Resolution: 1304 * 984
Size of the scheme (mm): 261.5 * 211 * 1.18
Size of the work (mm): 252.976 * 190.896
Pitch Pixel (mm): 0.194 * 0.194
Operating temperature: 0 ℃ ~ + 40 ℃
Storage temperature: -25 ℃ ~ + 60 ℃
Connector: Two FPC interfaces
Color: Black, White, Red
Maximum gray scale: 2
Packing volume: 6KG
El precio anterior incluye:
1) 12.48 inch 1304*984 low power consumption epaper display GDEW1248Z95 * 1pc
2) Helpful resources and manual * 1pc (If you need documents, please contact customer service)
GooDisplay 12.48 Inch Color Large E-Paper Screen Eink Display Electronic Paper Display Panel Black White Red
Price is below average
Current Price
$233
Average
$254
Min Price
$233
Max Price
$275
Price dynamics
8%
Description
See Related Products:
GDEW1248C63 : https://www.amazon.com/dp/B07N7V79DD?ref=myi_title_dp
GDEW1248Z95: https://www.amazon.com/dp/B07JG1TN5B?ref=myi_title_dp
GDEW1248T3: https://www.amazon.com/dp/B07HQMZHKZ?ref=myi_title_dp
Demo kit: https://www.amazon.com/dp/B07J58GQX5?ref=myi_title_dp
Connection board: https://www.amazon.com/dp/B07J9YDL28?ref=myi_title_dp
Introduction
This is an 12.48 inch red E ink E paper display panel with two FPC interfaces, 1304*984 resolution. An integrated circuit contains gate buffer, source buffer, interface, timing control logic, oscillator, DC-DC, SRAM, LUT, VCOM, and border are supplied with each panel.
In view of so many advantages: ultra low power consumption, near 180 degree view angle, readable under sunlight, GDEW1248Z95 is a very good choice for applications like display board in supermarket, industrial application and other related products.
Features
Two FPC interface, both have 30 pins
Ultra low power consumption, basically power is only required for refreshing.
SPI interface, for connecting with controller boards
Come with helpful development resources and manual (STM32 platform )
Main parameters
Part number: GDEW1248Z95
Type: Matrix
Resolution: 1304 * 984
Size of the scheme (mm): 261.5 * 211 * 1.18
Size of the work (mm): 252.976 * 190.896
Pitch Pixel (mm): 0.194 * 0.194
Operating temperature: 0 ℃ ~ + 40 ℃
Storage temperature: -25 ℃ ~ + 60 ℃
Connector: Two FPC interfaces
Color: Black, White, Red
Maximum gray scale: 2
Packing volume: 6KG
El precio anterior incluye:
1) 12.48 inch 1304*984 low power consumption epaper display GDEW1248Z95 * 1pc
2) Helpful resources and manual * 1pc (If you need documents, please contact customer service)
GDEW1248C63 : https://www.amazon.com/dp/B07N7V79DD?ref=myi_title_dp
GDEW1248Z95: https://www.amazon.com/dp/B07JG1TN5B?ref=myi_title_dp
GDEW1248T3: https://www.amazon.com/dp/B07HQMZHKZ?ref=myi_title_dp
Demo kit: https://www.amazon.com/dp/B07J58GQX5?ref=myi_title_dp
Connection board: https://www.amazon.com/dp/B07J9YDL28?ref=myi_title_dp
Introduction
This is an 12.48 inch red E ink E paper display panel with two FPC interfaces, 1304*984 resolution. An integrated circuit contains gate buffer, source buffer, interface, timing control logic, oscillator, DC-DC, SRAM, LUT, VCOM, and border are supplied with each panel.
In view of so many advantages: ultra low power consumption, near 180 degree view angle, readable under sunlight, GDEW1248Z95 is a very good choice for applications like display board in supermarket, industrial application and other related products.
Features
Two FPC interface, both have 30 pins
Ultra low power consumption, basically power is only required for refreshing.
SPI interface, for connecting with controller boards
Come with helpful development resources and manual (STM32 platform )
Main parameters
Part number: GDEW1248Z95
Type: Matrix
Resolution: 1304 * 984
Size of the scheme (mm): 261.5 * 211 * 1.18
Size of the work (mm): 252.976 * 190.896
Pitch Pixel (mm): 0.194 * 0.194
Operating temperature: 0 ℃ ~ + 40 ℃
Storage temperature: -25 ℃ ~ + 60 ℃
Connector: Two FPC interfaces
Color: Black, White, Red
Maximum gray scale: 2
Packing volume: 6KG
El precio anterior incluye:
1) 12.48 inch 1304*984 low power consumption epaper display GDEW1248Z95 * 1pc
2) Helpful resources and manual * 1pc (If you need documents, please contact customer service)
Price will be lower
in next 2 weeks
in next 2 weeks
According to the data, price will be lower in next two weeks, so not waste your money and track better price!

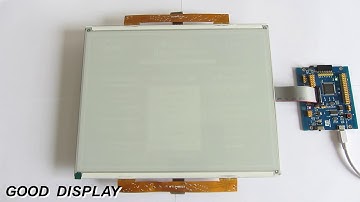

Product review & video
