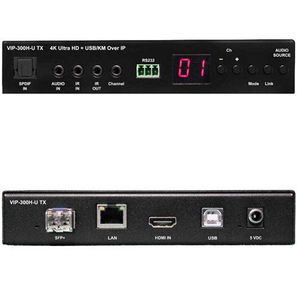

PureLink VIP-300H-U-Tx UltraHD 4K HDMI & USB/KM over IP Transmitter (Encoder)

the VIP 300-series accepts power over ethernet based on the 802.3 AF standard the VIP 300 series also comes standard with an AC power adapter with captive connector in the event you prefer to use one when utilizing the PIO e feature of the VIP 300 make sure you are connected to a network switch that supplies 802 3 AF compliant Pio II and that the PIO e function on that port is turned on when connecting to the VIP 300 either via Pio a network switch or power adapter the device will take approximately 25 seconds to boot the VIP 300 series provides both cat and fiber transport you may use one or the other transport method at a time per device however you can mix and match the cat and fiber transports per device to create a system that utilizes both an example would be where displays are situated far away from the network switch where you would use fiber to the decoders and the encoders are
