Description

This module is made for charging rechargeable lithium batteries using the constant-current/constant-voltage (CC/CV) charging method. In addition to safely charging a lithium battery the module also provides battery overcharge overdischarge protection. This module greatly simplifies the process of adding single cell Lithium battery power to your projects. Just connect the battery terminals to the indicated pads on the board and connect your output leads. The module keeps both cell voltage and current draw within safe tolerances, so there's little worry of damaging your battery.

Technical Specifications:
Input Voltage: DC5V
Input Interface: TYPE-C USB female
Charging Cut-off Voltage: 4.2V±1%
Maximum Charging Current: 1000mA
Battery Over Discharge Protection Voltage: DC2.5V
Battery Over Current Protection Current: 3A
Constant-Current/Constant-Voltage
Board Size: 26 X 17mm/1.02 "X 0.67"(L*W)
PRECAUTIONARY NOTE
1.when use this module at first time, there may be no voltage output between OUT+ and OUT-, it need connect the 5V power supply to active the circuit, When the battery disconnected from B+ B- and then connected again with this module also need this step.
2. Most modern phone/USB chargers can provide 1A or more; refer to the label on your phone charger to verify. If you use the TYPE-C USB connection, be sure to use a USB cable that is made to carry at least 1A.
3.The input reverse connection has no effect on the chip, but the output (battery side) reverse connection will burn the chip. 4.Connect the battery to B+ B-, insert the phone charger into the USB socket, the red light is charging, and the blue light is full. Package includes:

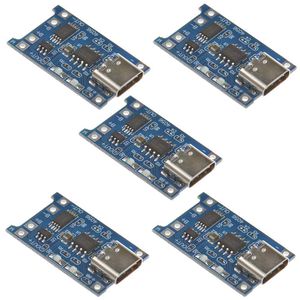

5 x TP4056 TYPE-C USB Lithium Battery Charger and Protection Module

Anmbest 5PCS TP4056 Type-C USB Open Source 5V 1A 18650 Standalone Linear Lithium Battery Charger Overcharge Discharge Protection Integrated Board

Price is below average

Current Price

$8.99

Average

$9.49

Min Price

$8.99

Max Price

$9.99

Price dynamics

5%

Description

This module is made for charging rechargeable lithium batteries using the constant-current/constant-voltage (CC/CV) charging method. In addition to safely charging a lithium battery the module also provides battery overcharge overdischarge protection. This module greatly simplifies the process of adding single cell Lithium battery power to your projects. Just connect the battery terminals to the indicated pads on the board and connect your output leads. The module keeps both cell voltage and current draw within safe tolerances, so there's little worry of damaging your battery.

Technical Specifications:
Input Voltage: DC5V
Input Interface: TYPE-C USB female
Charging Cut-off Voltage: 4.2V±1%
Maximum Charging Current: 1000mA
Battery Over Discharge Protection Voltage: DC2.5V
Battery Over Current Protection Current: 3A
Constant-Current/Constant-Voltage
Board Size: 26 X 17mm/1.02 "X 0.67"(L*W)
PRECAUTIONARY NOTE
1.when use this module at first time, there may be no voltage output between OUT+ and OUT-, it need connect the 5V power supply to active the circuit, When the battery disconnected from B+ B- and then connected again with this module also need this step.
2. Most modern phone/USB chargers can provide 1A or more; refer to the label on your phone charger to verify. If you use the TYPE-C USB connection, be sure to use a USB cable that is made to carry at least 1A.
3.The input reverse connection has no effect on the chip, but the output (battery side) reverse connection will burn the chip. 4.Connect the battery to B+ B-, insert the phone charger into the USB socket, the red light is charging, and the blue light is full. Package includes:
5 x TP4056 TYPE-C USB Lithium Battery Charger and Protection Module

According to the data, price will be lower in next two weeks, so not waste your money and track better price!
