Description

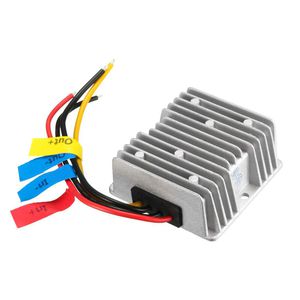

Product Name: Waterproof Voltage Converter Regulator DC 36V to DC 12V 15A 180W
Features:
1. 100% full power and stable current output, non-isolated module.
2. Waterproof level IP68 and anti-shock protection, Ultra compact size, light weight.
3. Industry grade DC36V to DC 12V step-down converter, efficiency up to 96%.
4. Die-cast aluminum shell, epoxy potting, cooling by free air convection.
5. Certificates: CE/RoHS, 1 year , lifetime up to 100,000 hours.
6. Protections: Over-current, Over-voltage, Over-temperature, Over-load and Short-circuit, auto-recovery when device is back to normal operating.
Specifications:
* Input Rated Voltage: DC 36V
* Input Voltage Range: 28-50V DC
* Output voltage: DC12V 15A
* Output Rated Power: 180W
* Efficiency: 96% (half load); 94% (full load)
* Output Peak Power: 225W
* Voltage Regulation: Less Than 1%
* Load Regulation: Less Than 2%
* Ripple(full load test): Less Than 50mV
* No-load Current: 25mA-27mA
* Total Size: 74*74*32mm(L*W*H)
* Weight: 300g
Package included:
1 x DC 36V to DC 12V 15A Voltage Converter
Features:
1. 100% full power and stable current output, non-isolated module.
2. Waterproof level IP68 and anti-shock protection, Ultra compact size, light weight.
3. Industry grade DC36V to DC 12V step-down converter, efficiency up to 96%.
4. Die-cast aluminum shell, epoxy potting, cooling by free air convection.
5. Certificates: CE/RoHS, 1 year , lifetime up to 100,000 hours.
6. Protections: Over-current, Over-voltage, Over-temperature, Over-load and Short-circuit, auto-recovery when device is back to normal operating.
Specifications:
* Input Rated Voltage: DC 36V
* Input Voltage Range: 28-50V DC
* Output voltage: DC12V 15A
* Output Rated Power: 180W
* Efficiency: 96% (half load); 94% (full load)
* Output Peak Power: 225W
* Voltage Regulation: Less Than 1%
* Load Regulation: Less Than 2%
* Ripple(full load test): Less Than 50mV
* No-load Current: 25mA-27mA
* Total Size: 74*74*32mm(L*W*H)
* Weight: 300g
Package included:
1 x DC 36V to DC 12V 15A Voltage Converter
uxcell Voltage Converter Regulator DC/DC DC 36V Step-Down to DC 12V 15A 180W Power Buck Transformer Waterproof
