$ Tracking

Transformer 20VA, 120-24V, single hub, Class 2, UL

Get price
Current Price
$9.7
Average
$9.5
Min Price
$6.89
Max Price
$9.94
Price dynamics
2%
Price will be lower
in next 2 weeks
According to the data, price will be lower in next two weeks, so not waste your money and track better price!
Product review & video

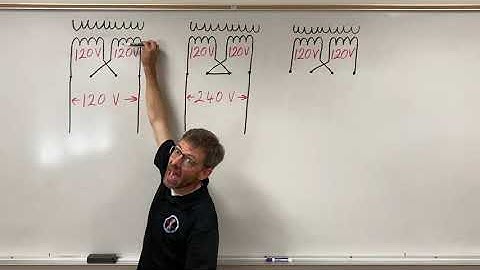

so here i've set up three dual voltage secondaries i'm less concerned with what's going on in the primary side on these just looking at the secondary and i'm trying to develop different outcomes on the first one i want it to be 120 volts between the two leads on the second one 240. then on the third one i'm going to try and get 120 and 240 see if i can get both options out of the same dual voltage transformer see if i can okay so here obviously i have i'm not going to have a voltage between these wires because they don't connect together i haven't put my jumpers in either of these so i simply have one lead of this winding and one lead of the other winding am i going to put my jumpers in the center a single jumper in the center or a jumper in each side to develop 120 volts well let's think about that i've got 120 volts developed on this winding and if i connect it in series i'll add anot
Similar products
