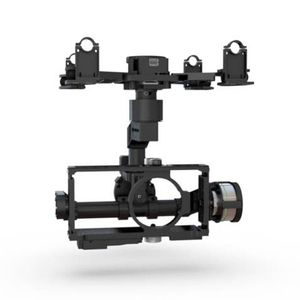

DJI Zenmuse Z15-BMPCC 3-Axis Gimbal for Blackmagic Pocket Cinema Camera

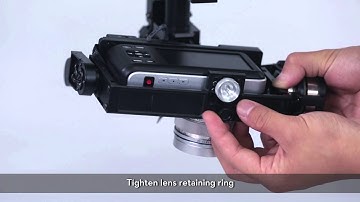

mounting the zenmuse z15 bmpcc open the box take out the gimbal and prep it for attachment remove the gimbal damping units remove these dampers and brackets mount gimbal to the lower connection points dip screwed in thread Locker before tightening plug 9 pin and 6 pin cables into G 9 and G six ports mount the GCU in the reserved position install the receiver mounting board and tighten the GCU connect the GCU to a DJI flight controller using a can bus cable connect the six pin port to the GCU g6 port connects the nine pin port to the GCE u g9 port mount the lens retainer ring mount the camera in the gimbal tighten the lower camera mounting screw tighten the upper camera mounting screw tighten the lens retaining ring select the HDMI cable into the camera connect the camera shutter control cable attach the light bridge air system antenna extension make sure everything is tight mount the li
