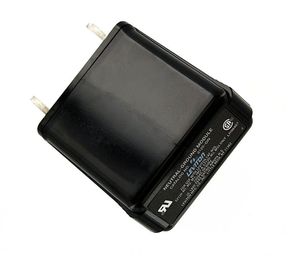

Leviton 8120-GN Transient Voltage Surge Suppression Neutral To Ground Rated 120 Vic 50/60 Hz Max

we're now going to demonstrate the ability of the power expert meter to capture common power quality events what we're going to demonstrate right now is a transient voltage surge what we have here is we have a transient voltage surge generator capable of generating transients of up to 10,000 volts and 10,000 amps connected to this transient voltage surge generator is a light bulb and connected in parallel is the power expert meter I'm now going to induce a transient onto the system our power expert meter will record this event the surge waveform has been captured first of all by this Lucroy oscilloscope this oscilloscope is a very expensive piece of equipment with that has the necessary speed to capture fast transient events worth over $20,000 we can see the ring waveform here is a common example of damaging transients now if we look at the power expert 8000 screen we can see that the p
