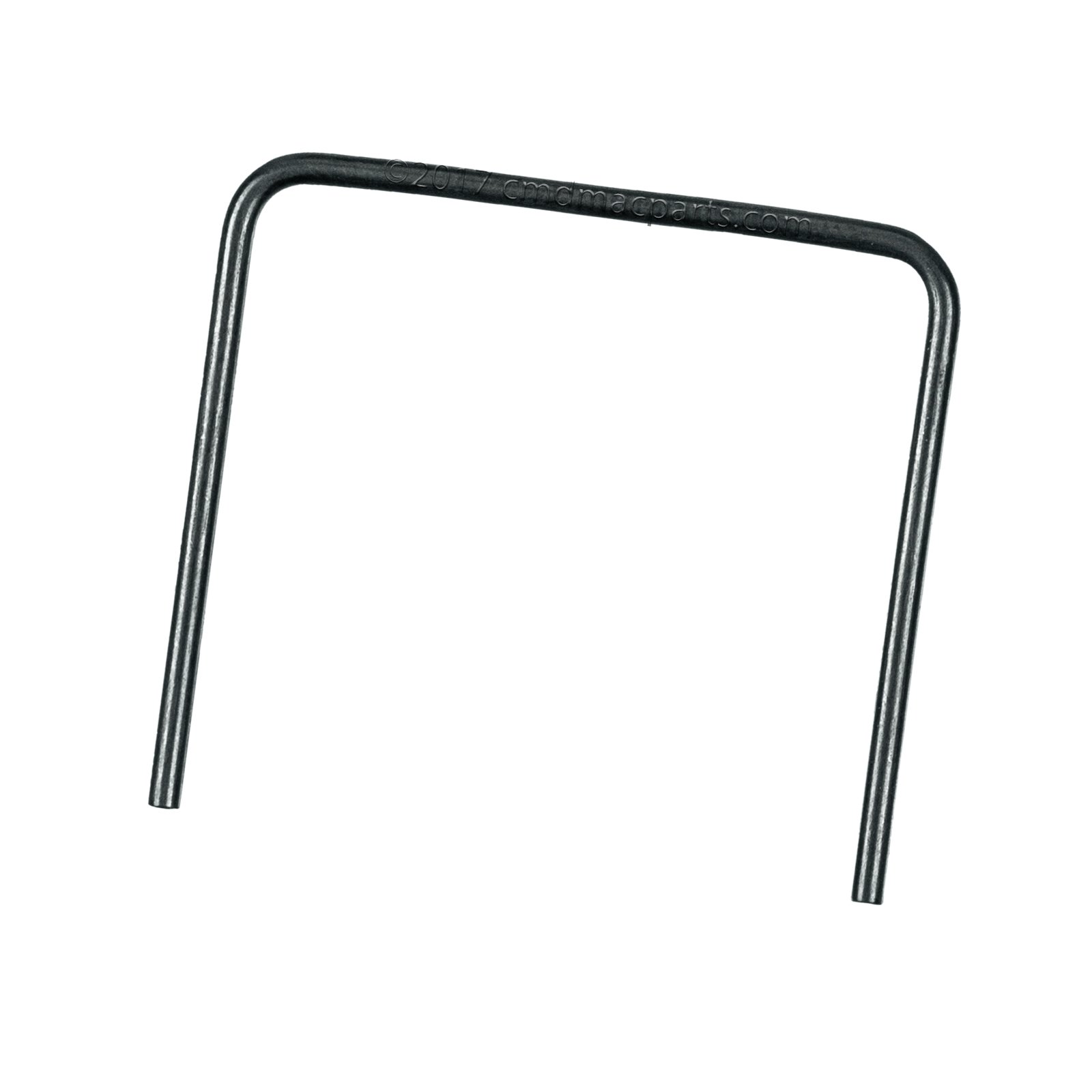

Odyson - Logic Board Removal Tool Replacement for Mac Mini A1347 (Mid 2010-Late 2014)

logic board replacement for Mac Mini a 1347 2010 to 2012 the tools we'll need are 85 T 68 screwdriver tweezers and thermal paste go ahead and begin by flipping the unit over and hitting that like button jokes aside as you can see there is a little dot right there what we want to do is put our both fingers on the left right and kind of twist it counterclockwise about quarter of an inch and then we can just tip the unit over and remove the rear cover so now we have access to the inner parts of the Mac Mini we'll need to remove the three screws t6 screws that are securing the fan go ahead and start with the top right screw and then the top left screw and then the bottom right long screw I like to keep the screws in place just unscrew them now you can lift up the fan and then gently from underneath get your finger under the cable and push up until it pops out of its socket make sure to gent
