Description

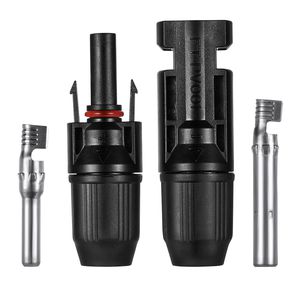

JYFT MC4 PHOTOVOLTAIC CONNECTOR:
This connector has successfully passed the TUV certification, CE certification, is specifically designed for connecting photovoltaic solar systems with high mechanical requirements and extreme weather conditions. For permanent installations.
DETAILS ARE MORE CAPABLE OF SHOWING THE QUALITY OF THE JYFT MC4 SOLAR PANEL CABLE CONNECTORS:
-The connectors are made from PPO/PPE materials. With excellent aging resistance and UV endurance.It can be used in the outdoor iron environment.
- The connectors are using thickened copper core, and plate with tin.
- The connectors are using insulation parts to prevent electric shock .
- The connectors are using high quality waterproof ring, waterproof grade to IP67 .
SPECIFICATION:
-Rated current: 30A (2.5m㎡--6m㎡)
-Rated voltage: 1000V DC
-Connector contact resistance:≤0.5mΩ
-Degree of waterproof: IP67
-Flammability rating: UL94-V0
-Safety: Class II
-Suitable cable: 2.5m㎡--6m㎡( include AWG13,AWG12, AWG11,AWG10 )
-Adapter Wire: OD 5mm-7mm
-Connector conductor material: copper, Tin
-Connector Insulation material: PPO/PPE
-Insertion force: less or equal to 50N
-Withdrawal force: over or equal to 50N
-Operating temperature range: -40℃~ +85℃
-Connection: Clamp
PACKAGE INCLUDED:
-1 Pair MC4 Male/Female Solar Panel Cable Connectors
-1 Pair Solar Connector Pins (male &female)
20 YEARS WARRANTY AND BEST AFTER-SALE SERVICE.
This connector has successfully passed the TUV certification, CE certification, is specifically designed for connecting photovoltaic solar systems with high mechanical requirements and extreme weather conditions. For permanent installations.
DETAILS ARE MORE CAPABLE OF SHOWING THE QUALITY OF THE JYFT MC4 SOLAR PANEL CABLE CONNECTORS:
-The connectors are made from PPO/PPE materials. With excellent aging resistance and UV endurance.It can be used in the outdoor iron environment.
- The connectors are using thickened copper core, and plate with tin.
- The connectors are using insulation parts to prevent electric shock .
- The connectors are using high quality waterproof ring, waterproof grade to IP67 .
SPECIFICATION:
-Rated current: 30A (2.5m㎡--6m㎡)
-Rated voltage: 1000V DC
-Connector contact resistance:≤0.5mΩ
-Degree of waterproof: IP67
-Flammability rating: UL94-V0
-Safety: Class II
-Suitable cable: 2.5m㎡--6m㎡( include AWG13,AWG12, AWG11,AWG10 )
-Adapter Wire: OD 5mm-7mm
-Connector conductor material: copper, Tin
-Connector Insulation material: PPO/PPE
-Insertion force: less or equal to 50N
-Withdrawal force: over or equal to 50N
-Operating temperature range: -40℃~ +85℃
-Connection: Clamp
PACKAGE INCLUDED:
-1 Pair MC4 Male/Female Solar Panel Cable Connectors
-1 Pair Solar Connector Pins (male &female)
20 YEARS WARRANTY AND BEST AFTER-SALE SERVICE.
JYFT MC4 Solar Panel Cable Connectors MC4 Male/Female IP67 30A 1000V DC (1Pair)
