Description
Camera
Image Sensor: | 1/2.8" Progressive Scan CMOS
Effective Pixels: | 2048(H)x1536(V)
Minimum Illumination: | F1.6, AGC On : Color : 0.05 lux, B/W : 0.01 lux
White Balance: | Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
AGC: | Auto/Manual
BLC: | ON/OFF
HLC: | Support
WDR: | DWDR
Shutter Time: | 1/1~1/10,000s
Day& Night: | ICR
Digital Zoom: | 16X
Privacy Masking: | 8 privacy masks programmable
Auto Focus: | Auto / Semi-automatic / Manual
Lens
Focal Length: | 2.8~12mm, 4x
Zoom Speed: | Approx.1s(Wide~Tele)
Angle of View: | 105~33.5 degree (Wide~Tele)
Aperture Range: | F1.6 ~F2.7
Pan & Tilt
Pan Range: | Pan: 0~350°
Pan Speed: | Pan Manual Speed: 0.1°~60°/s
Tilt Range: | Tilt: 0°~90°
Tilt Speed: | Tilt Manual Speed: 0.1°~50°/s
Proportional Zoom: | Rotation speed can be adjusted automatically according to zoom
multiples
Number of Preset: | 300
Power loss recovery: | Support
Park Action: | Preset
PTZ Position Display: | ON/OFF
Alarm
Alarm Input: | 1
Alarm Output: | 1
Input & Output
Audio Input: | 1 Mic in/Line in interface
Audio Output: | 1 Audio output interface
Line level, impedance: 600Ω
Network
Ethernet: | 10Base -T, /100Base-TX, RJ45 Connector
Max.Image Resolution: | 2048×1536
Video Compression: | H.264 / MJPEG
ROI encoding: | Support 4 areas with adjustable levels
Audio Compression: | G.711ulaw/G.711alaw/G.726/MP2L2/G.722
No. of Simultaneous Users: | Up to 20 users
Dual Stream: | Support
General
Menu Language: | English
Power Supply: | 12V DC or PoE((802.3af, class3)
Power Consumption: | Max. 8W
Dimensions: | Φ140.7×107.2mm
Weight (approx.): | 950g
Image Sensor: | 1/2.8" Progressive Scan CMOS
Effective Pixels: | 2048(H)x1536(V)
Minimum Illumination: | F1.6, AGC On : Color : 0.05 lux, B/W : 0.01 lux
White Balance: | Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
AGC: | Auto/Manual
BLC: | ON/OFF
HLC: | Support
WDR: | DWDR
Shutter Time: | 1/1~1/10,000s
Day& Night: | ICR
Digital Zoom: | 16X
Privacy Masking: | 8 privacy masks programmable
Auto Focus: | Auto / Semi-automatic / Manual
Lens
Focal Length: | 2.8~12mm, 4x
Zoom Speed: | Approx.1s(Wide~Tele)
Angle of View: | 105~33.5 degree (Wide~Tele)
Aperture Range: | F1.6 ~F2.7
Pan & Tilt
Pan Range: | Pan: 0~350°
Pan Speed: | Pan Manual Speed: 0.1°~60°/s
Tilt Range: | Tilt: 0°~90°
Tilt Speed: | Tilt Manual Speed: 0.1°~50°/s
Proportional Zoom: | Rotation speed can be adjusted automatically according to zoom
multiples
Number of Preset: | 300
Power loss recovery: | Support
Park Action: | Preset
PTZ Position Display: | ON/OFF
Alarm
Alarm Input: | 1
Alarm Output: | 1
Input & Output
Audio Input: | 1 Mic in/Line in interface
Audio Output: | 1 Audio output interface
Line level, impedance: 600Ω
Network
Ethernet: | 10Base -T, /100Base-TX, RJ45 Connector
Max.Image Resolution: | 2048×1536
Video Compression: | H.264 / MJPEG
ROI encoding: | Support 4 areas with adjustable levels
Audio Compression: | G.711ulaw/G.711alaw/G.726/MP2L2/G.722
No. of Simultaneous Users: | Up to 20 users
Dual Stream: | Support
General
Menu Language: | English
Power Supply: | 12V DC or PoE((802.3af, class3)
Power Consumption: | Max. 8W
Dimensions: | Φ140.7×107.2mm
Weight (approx.): | 950g

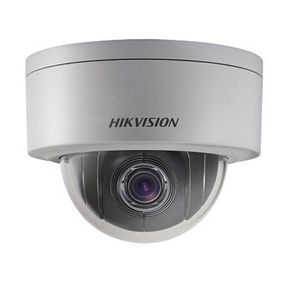

Hikvision DS-2DE3304W-DE 3MP Network Mini PTZ Repositionable Dome Camera POE 4X Optical Zoom H.264 Video Compression Format Outdoor Security Surveillance Camera ONVIF English Version (Can Be Upgrade)
Price is below average
Current Price
$181.99
Average
$212.07
Min Price
$179.99
Max Price
$370
Price dynamics
14%
Description
Camera
Image Sensor: | 1/2.8" Progressive Scan CMOS
Effective Pixels: | 2048(H)x1536(V)
Minimum Illumination: | F1.6, AGC On : Color : 0.05 lux, B/W : 0.01 lux
White Balance: | Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
AGC: | Auto/Manual
BLC: | ON/OFF
HLC: | Support
WDR: | DWDR
Shutter Time: | 1/1~1/10,000s
Day& Night: | ICR
Digital Zoom: | 16X
Privacy Masking: | 8 privacy masks programmable
Auto Focus: | Auto / Semi-automatic / Manual
Lens
Focal Length: | 2.8~12mm, 4x
Zoom Speed: | Approx.1s(Wide~Tele)
Angle of View: | 105~33.5 degree (Wide~Tele)
Aperture Range: | F1.6 ~F2.7
Pan & Tilt
Pan Range: | Pan: 0~350°
Pan Speed: | Pan Manual Speed: 0.1°~60°/s
Tilt Range: | Tilt: 0°~90°
Tilt Speed: | Tilt Manual Speed: 0.1°~50°/s
Proportional Zoom: | Rotation speed can be adjusted automatically according to zoom
multiples
Number of Preset: | 300
Power loss recovery: | Support
Park Action: | Preset
PTZ Position Display: | ON/OFF
Alarm
Alarm Input: | 1
Alarm Output: | 1
Input & Output
Audio Input: | 1 Mic in/Line in interface
Audio Output: | 1 Audio output interface
Line level, impedance: 600Ω
Network
Ethernet: | 10Base -T, /100Base-TX, RJ45 Connector
Max.Image Resolution: | 2048×1536
Video Compression: | H.264 / MJPEG
ROI encoding: | Support 4 areas with adjustable levels
Audio Compression: | G.711ulaw/G.711alaw/G.726/MP2L2/G.722
No. of Simultaneous Users: | Up to 20 users
Dual Stream: | Support
General
Menu Language: | English
Power Supply: | 12V DC or PoE((802.3af, class3)
Power Consumption: | Max. 8W
Dimensions: | Φ140.7×107.2mm
Weight (approx.): | 950g
Image Sensor: | 1/2.8" Progressive Scan CMOS
Effective Pixels: | 2048(H)x1536(V)
Minimum Illumination: | F1.6, AGC On : Color : 0.05 lux, B/W : 0.01 lux
White Balance: | Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
AGC: | Auto/Manual
BLC: | ON/OFF
HLC: | Support
WDR: | DWDR
Shutter Time: | 1/1~1/10,000s
Day& Night: | ICR
Digital Zoom: | 16X
Privacy Masking: | 8 privacy masks programmable
Auto Focus: | Auto / Semi-automatic / Manual
Lens
Focal Length: | 2.8~12mm, 4x
Zoom Speed: | Approx.1s(Wide~Tele)
Angle of View: | 105~33.5 degree (Wide~Tele)
Aperture Range: | F1.6 ~F2.7
Pan & Tilt
Pan Range: | Pan: 0~350°
Pan Speed: | Pan Manual Speed: 0.1°~60°/s
Tilt Range: | Tilt: 0°~90°
Tilt Speed: | Tilt Manual Speed: 0.1°~50°/s
Proportional Zoom: | Rotation speed can be adjusted automatically according to zoom
multiples
Number of Preset: | 300
Power loss recovery: | Support
Park Action: | Preset
PTZ Position Display: | ON/OFF
Alarm
Alarm Input: | 1
Alarm Output: | 1
Input & Output
Audio Input: | 1 Mic in/Line in interface
Audio Output: | 1 Audio output interface
Line level, impedance: 600Ω
Network
Ethernet: | 10Base -T, /100Base-TX, RJ45 Connector
Max.Image Resolution: | 2048×1536
Video Compression: | H.264 / MJPEG
ROI encoding: | Support 4 areas with adjustable levels
Audio Compression: | G.711ulaw/G.711alaw/G.726/MP2L2/G.722
No. of Simultaneous Users: | Up to 20 users
Dual Stream: | Support
General
Menu Language: | English
Power Supply: | 12V DC or PoE((802.3af, class3)
Power Consumption: | Max. 8W
Dimensions: | Φ140.7×107.2mm
Weight (approx.): | 950g
Price will be lower
in next 2 weeks
in next 2 weeks
According to the data, price will be lower in next two weeks, so not waste your money and track better price!
Product review & video
hey guys in this video I'm going to be unboxing and reviewing this hikvision mini PT's dated camera I'm very excited to be presenting this camera today this is a step above all the other cameras I've been showing on this channel more of a professional-grade camera it's a PTZ camera which means pan tilt and zoom meaning you can mechanically move the camera back and forth up and down and zoom in and out this is an outdoor camera and it cost roughly one hundred and fifty dollars American almost 200 Canadian but not North American version of this camera is available on the great market for a little bit cheaper but it may not be upgradeable I don't mind purchasing these as they are top quality just like all the ink vision products so inside the box we have a drone template manual and the disc always download the latest from the website of course there are some mounting screws for mounting sc
