Description

Input:RDL FORMAT-AInput Connection:RJ45 (Models D-, DS-, AF-); Detachable Terminal Block (Model EM-)Format-A Signal Pairs Used (3):A, B, COutputs (3):150 Ω balanced; 100 Ω unbalancedOutput Connection:XLR (balanced Mic or Line); RCA Phono Jack (2)Output Level:XLR: -45 dBu Mic or +4 dBu Line Level, Switch-selectable on rear panel; RCA phono: -10 dBVFrequency Response:10 Hz to 50 kHz (+/- 0.1 dB)THD+N:< 0.005%Noise below +4 dBu:< -90 dBCrosstalk:< 90 dB (1 kHz); < 75 dB (20 Hz to 20 kHz)Headroom above +4 dBu: 18 dBCMRR: 80 dB (50 Hz to 150 Hz)Indicator:Power InPower Connections (2):Detachable terminal block; RJ45Power Requirement:24 Vdc @ 45 mA plus connected loadsDimensions:EM-TPR3A: 1.77" (45 mm) W and H; 1.93" (4.9 cm) DD-, DS-TPR3A: 1.6" (4.06 cm) W; 4.11" (10.45 cm) H; 1.89" (4.8 cm) DAF-TPR3A: 2.22" (5.64 cm) W; 2.77" (7.04 cm) H; 1.89" (4.8 cm) DMounting Box Minimum Depth:2.4" (Models D-, DS-, AF-); 39 mm (Model EM-)Ambient Operating Environment:0 C to 55 C

RDL D-TPR3A Active Three Pair Receiver - Power Supply Included

Get price

Current Price

$196.29

Average

$191.1

Min Price

$159.95

Max Price

$197

Price dynamics

Description

According to the data, price will be lower in next two weeks, so not waste your money and track better price!

Product review & video

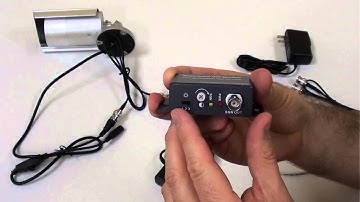

this video demonstrates how to instal activex video balance with cat5 cable for CCTV video transmission the AV b1 active balance system will be used in this demonstration on the Left we have the transmitter side of the balance system a single twisted pair from a cat5 is already connected to the terminal block of the device the terminal block conveniently detaches from the transmitter allowing the Installer to attach the cable more easily in addition to the two connections used for video there's a third connector for grounding the device when the ground terminal is properly grounded the video ballon also provides lightning and power surge protection a DC power supply is included and connects as seen here a short BNC jumper cable is used to connect the CCTV camera to the input of the transmitting ballon typically in large installations rg59 siamese cable is used a distant selector is loca
