Description
Features:
1.Omron 5V solid state relay 240V 2A,output with resistive fuse 240V 2A
2.Size: 56.6mm*55.4mm*24.0mm
3.Weight:36.4g
4.Input power: 5V DC (≤160MA)
5.Trigger signal voltage:
Low level: 0-1.5V relay on
High level: 2.5-5V relay off
Module interface:
Input part:
DC+: connect the power supply positive (press the relay voltage power supply)
DC-: the cathode of a power supply
CH1: 1 relay module signal trigger end (low level trigger effective)
CH2: 2 relay module signal trigger end (low level trigger effective)
CH3: 3 relay module signal trigger end (low level trigger effective)
CH4: 4 relay module signal trigger end (low level trigger effective)
Note:
1.Module power supply: Power must be DC, 5V power supply
2.The control terminal voltage of the module: This module can only be used to control the AC current, can not control the DC current
Package include:
1 x 4-Channel Solid State Relay Module
1.Omron 5V solid state relay 240V 2A,output with resistive fuse 240V 2A
2.Size: 56.6mm*55.4mm*24.0mm
3.Weight:36.4g
4.Input power: 5V DC (≤160MA)
5.Trigger signal voltage:
Low level: 0-1.5V relay on
High level: 2.5-5V relay off
Module interface:
Input part:
DC+: connect the power supply positive (press the relay voltage power supply)
DC-: the cathode of a power supply
CH1: 1 relay module signal trigger end (low level trigger effective)
CH2: 2 relay module signal trigger end (low level trigger effective)
CH3: 3 relay module signal trigger end (low level trigger effective)
CH4: 4 relay module signal trigger end (low level trigger effective)
Note:
1.Module power supply: Power must be DC, 5V power supply
2.The control terminal voltage of the module: This module can only be used to control the AC current, can not control the DC current
Package include:
1 x 4-Channel Solid State Relay Module

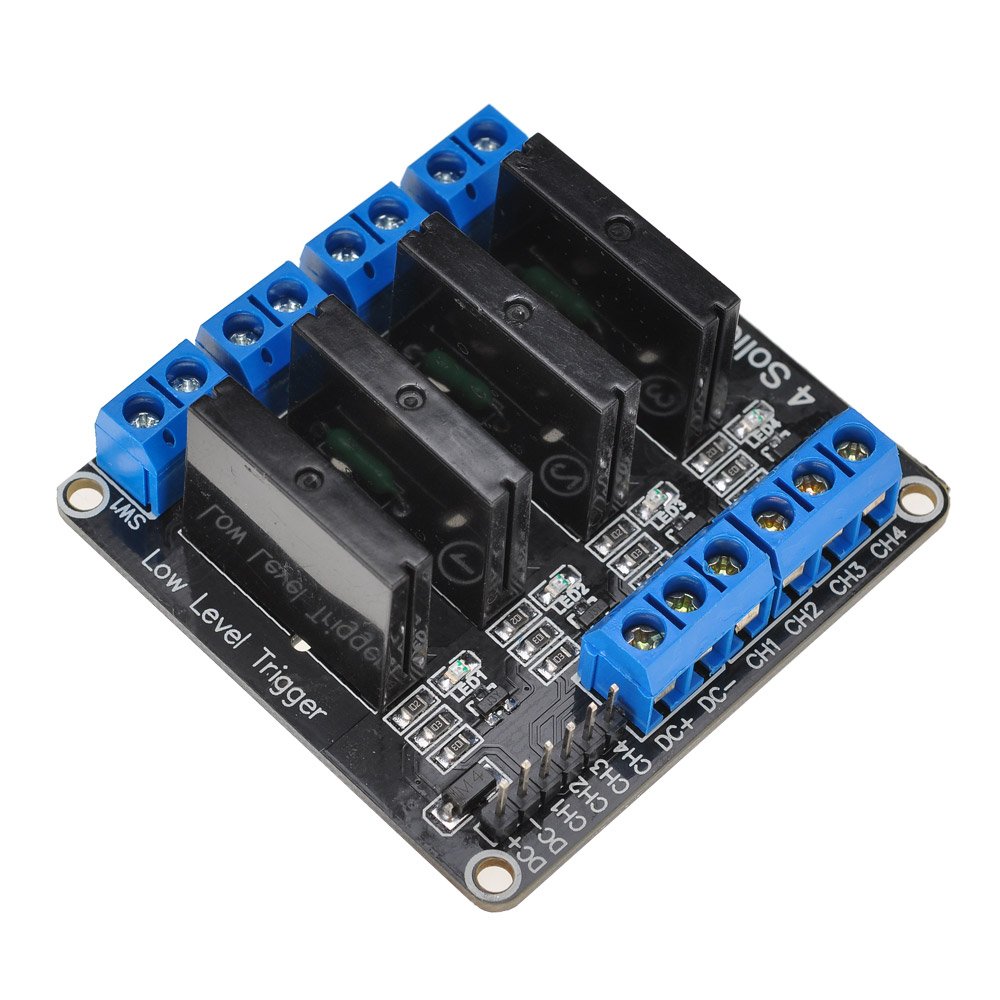

Lysignal 5V 4 Channel Solid State Relay Module With fuse for Arduino Uno Duemilanove MEGA2560 MEGA1280 ARM DSP PIC
Current Price
$13.99
Average
$12.36
Min Price
$10.99
Max Price
$13.99
Price dynamics
12%
Description
Features:
1.Omron 5V solid state relay 240V 2A,output with resistive fuse 240V 2A
2.Size: 56.6mm*55.4mm*24.0mm
3.Weight:36.4g
4.Input power: 5V DC (≤160MA)
5.Trigger signal voltage:
Low level: 0-1.5V relay on
High level: 2.5-5V relay off
Module interface:
Input part:
DC+: connect the power supply positive (press the relay voltage power supply)
DC-: the cathode of a power supply
CH1: 1 relay module signal trigger end (low level trigger effective)
CH2: 2 relay module signal trigger end (low level trigger effective)
CH3: 3 relay module signal trigger end (low level trigger effective)
CH4: 4 relay module signal trigger end (low level trigger effective)
Note:
1.Module power supply: Power must be DC, 5V power supply
2.The control terminal voltage of the module: This module can only be used to control the AC current, can not control the DC current
Package include:
1 x 4-Channel Solid State Relay Module
1.Omron 5V solid state relay 240V 2A,output with resistive fuse 240V 2A
2.Size: 56.6mm*55.4mm*24.0mm
3.Weight:36.4g
4.Input power: 5V DC (≤160MA)
5.Trigger signal voltage:
Low level: 0-1.5V relay on
High level: 2.5-5V relay off
Module interface:
Input part:
DC+: connect the power supply positive (press the relay voltage power supply)
DC-: the cathode of a power supply
CH1: 1 relay module signal trigger end (low level trigger effective)
CH2: 2 relay module signal trigger end (low level trigger effective)
CH3: 3 relay module signal trigger end (low level trigger effective)
CH4: 4 relay module signal trigger end (low level trigger effective)
Note:
1.Module power supply: Power must be DC, 5V power supply
2.The control terminal voltage of the module: This module can only be used to control the AC current, can not control the DC current
Package include:
1 x 4-Channel Solid State Relay Module
Price will be lower
in next 2 weeks
in next 2 weeks
According to the data, price will be lower in next two weeks, so not waste your money and track better price!
