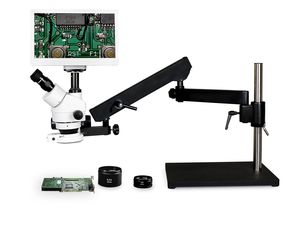

This Parco Scientific trinocular zoom stereo microscope is ideal for laboratory and industrial applications. Using its high resolution, great depth, and a large field of view, it is the perfect instrument for viewing any three-dimensional specimen or large objects.A hinged, spring-mounted arm promises versatility and provides ample space for the desired positioning over the bench-top, saving valuable work space. Each movement is individually adjusted and precisely positioned. The microscope can briefly be brought into place and returned again without difficulty.

Specifications

• Head: Trinocular, 45° inclined, rotates 360°
• Eyepiece: 10x WF / 20mm high eye point
• Zoom Range: 0.7x—4.5x, 1:6.4 zoom ratio
• Magnification Range: 7x—45x, 5x—90x with the 0.5x & 2x auxiliary Lens
• Working Distance: Up to 8” vertical; Up to 4” optical;  40” arm reach
• Field of View: 2 ½”
• Head Movement: X-, Y-, and Z- axes

Display and Camera Specifications

• 1920 x 1080 full HD resolution (15 frames per second real-time); 190 pixels per inch
• High resolution 5MP images (2592 x 1944 resolution)
• Built-in SD card for image & video capture; HDMI and USB 2.0 simultaneous outputs

Packing List

• Trinocular zoom stereo microscope head
• Pair of 10x WF eyepieces
• Articulating arm pillar stand w/ base
• Focusing arm
• Pair of eye guards
• One dust cover
• User manual
• 0.5x and 2x auxiliary lens
• 144-LED ring light with intensity control
• Power adaptor
• 11.6” retina HD display with 5MP HD camera
• HDMI & USB 2.0 cables
• Measurement software CD
• Power adaptor
