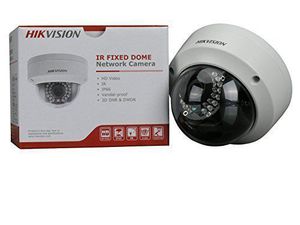

Hikvision 3mp DS-2CD2132F-IS 2.8mm Network Dome Camera
Image Sensor: | 1/3" Progressive Scan CMOS
Shutter time: | 1/3 s to 1/100,000 s
Lens: | 2.8mm@Angle of view: 98.5°(2.8mm)
Day& Night: | IR cut filter with auto switch
Wide Dynamic Range: | Digital WDR
Digital noise reduction: | 3D DNR
Compression Standard
Video Compression: | H.264/MJPEG
Video bit rate: | 32Kbps~12Mbps
Dual Stream: | Yes
Max. Image Resolution: | 2048×1536
Image Settings: | Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser
BLC: | Yes, zone configurable
ROI: | Support
Network
Network Storage: |MicroSD/SDHC/SDXC card with ANR (up to 64G), NAS (Support NFS, SMB/CIFS)
Security: | User Authentication, Watermark, IP address filtering, Anonymous access
System Compatibility: | ONVIF, PSIA, CGI, ISAPI
Interface
Communication Interface: | 1 RJ45 10M / 100M Ethernet interface
General
Operating Conditions: | -30 °C ~ 60 °C (-22 °F ~ 140 °F)
Power Supply: | 12 VDC ± 10%, PoE (802.3af)
Power Consumption: | Max. 5W
Impact Protection: | IEC60068-2-75Eh, 50J; EN50102, IK10
Dimensions: | Φ111 × 82 (4.4" × 3.2")
Weight: | 500g (1.1 lb)
Hikvision 3MP DS-2CD2132F-IS 2.8mm POE Vandal-proof Network Dome Camera H264 IP66 Outdoor Security Surveillance Camera ONVIF English Version
Hikvision 3mp DS-2CD2132F-IS 2.8mm Network Dome Camera
Image Sensor: | 1/3" Progressive Scan CMOS
Shutter time: | 1/3 s to 1/100,000 s
Lens: | 2.8mm@Angle of view: 98.5°(2.8mm)
Day& Night: | IR cut filter with auto switch
Wide Dynamic Range: | Digital WDR
Digital noise reduction: | 3D DNR
Compression Standard
Video Compression: | H.264/MJPEG
Video bit rate: | 32Kbps~12Mbps
Dual Stream: | Yes
Max. Image Resolution: | 2048×1536
Image Settings: | Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser
BLC: | Yes, zone configurable
ROI: | Support
Network
Network Storage: |MicroSD/SDHC/SDXC card with ANR (up to 64G), NAS (Support NFS, SMB/CIFS)
Security: | User Authentication, Watermark, IP address filtering, Anonymous access
System Compatibility: | ONVIF, PSIA, CGI, ISAPI
Interface
Communication Interface: | 1 RJ45 10M / 100M Ethernet interface
General
Operating Conditions: | -30 °C ~ 60 °C (-22 °F ~ 140 °F)
Power Supply: | 12 VDC ± 10%, PoE (802.3af)
Power Consumption: | Max. 5W
Impact Protection: | IEC60068-2-75Eh, 50J; EN50102, IK10
Dimensions: | Φ111 × 82 (4.4" × 3.2")
Weight: | 500g (1.1 lb)
