Description
Description:
Specifications Model: OEP50Wx2
Work: Class D (PWM modulation)
Chip: TPA3116D2
Number of Channels: two-channel
Power supply range:DC4.5-24V
Quiescent Current: 28mA (21V power supply)
Sleep current:. <0.4mA (21V power supply)
Recommended speaker: 50-100W
SNR: 102dB
Harmonic distortion: <0.1%
Frequency range: 20Hz-20kHz
Amplifier Gain: 36dB (the board can be set to 20dB, 26dB)
Input impedance: 1KΩ
Output Impedance:. 8-3.2 Ω
Output Power:
40W THD + N = 10% (8Ω, 24V)
30W THD + N = 10% (8Ω, 21V)
50W THD + N = 10% (4Ω, 21V)
25W THD + N = 10% (4Ω, 15V)
17W THD + N = 10% (4Ω, 12V)
32W THD + N = 1% (8Ω, 24V)
40W THD + N = 1% (4Ω, 21V)
17W more than need to add heat sink
Protection: Output short circuit protection (Troubleshooting immediate recovery).
Working temperature: -40-85 ℃
Size: 25x 18x2.5mm (L * W * H)
NOTE: 4 ohms speaker does not recommend more than 21V power supply.
Package Included:
1pcs NOYITO OEP 50Wx2 Dual Channel Audio Digital Amplifier Board
Specifications Model: OEP50Wx2
Work: Class D (PWM modulation)
Chip: TPA3116D2
Number of Channels: two-channel
Power supply range:DC4.5-24V
Quiescent Current: 28mA (21V power supply)
Sleep current:. <0.4mA (21V power supply)
Recommended speaker: 50-100W
SNR: 102dB
Harmonic distortion: <0.1%
Frequency range: 20Hz-20kHz
Amplifier Gain: 36dB (the board can be set to 20dB, 26dB)
Input impedance: 1KΩ
Output Impedance:. 8-3.2 Ω
Output Power:
40W THD + N = 10% (8Ω, 24V)
30W THD + N = 10% (8Ω, 21V)
50W THD + N = 10% (4Ω, 21V)
25W THD + N = 10% (4Ω, 15V)
17W THD + N = 10% (4Ω, 12V)
32W THD + N = 1% (8Ω, 24V)
40W THD + N = 1% (4Ω, 21V)
17W more than need to add heat sink
Protection: Output short circuit protection (Troubleshooting immediate recovery).
Working temperature: -40-85 ℃
Size: 25x 18x2.5mm (L * W * H)
NOTE: 4 ohms speaker does not recommend more than 21V power supply.
Package Included:
1pcs NOYITO OEP 50Wx2 Dual Channel Audio Digital Amplifier Board

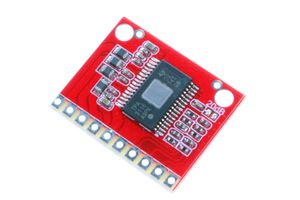

NOYITO OEP 50Wx2 Dual Channel Audio Digital Amplifier Board Class D DC 4.5 to 24V for 50-100W Speaker
Price is below average
Current Price
$9
Average
$10.06
Min Price
$9
Max Price
$10.99
