INTRODUCTION

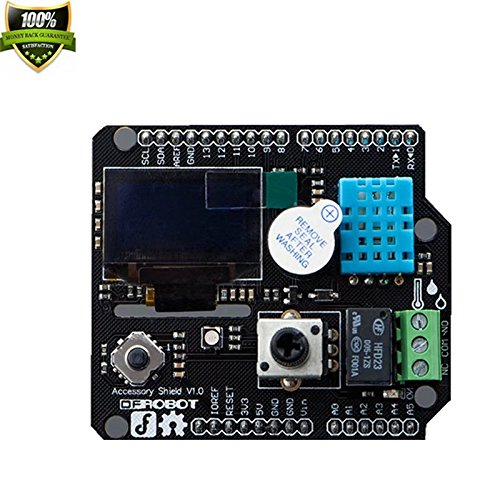

This Accessory Shield for Bluno is specially made for Bluno (BLE with Arduino Uno), which is first of its kind in intergrating BT 4.0(BLE) module into Arduino Uno.
These useful modules are:
128x64 OLED Screen To display text input on your phone interface
Buzzer To make noises
DHT11 Temperature&Humidity Sensor To do environmental monitoring
1.5A Relay To conduct device switch
Helical Potentiometer To transfer real time data to your phone
RGB LED To display full color RGB
Mini Joystick To tell your phone which one in five directions is pressed
The exposed terminal on the back is used for the relay external circuit, its mode of operation as with other relay products we have can be checked on the relay link here: Relay wiki link Our relay module has 4 connectors, but one of the connectors is left unused ( N\C not connected ).
FEATURES
128x64 OLED Screen:Display messages from your phone interface.
Buzzer:Enable Sound notifications or simple music.
DHT11 Temperature&Humidity Sensor:For environmental monitoring.
1.5A Relay: Device switch or integrating with other electronics.
Helical Potentiometer:Transfer real time data to your phone
RGB LED: Display full color RGB
Mini Joystick:Tells your phone which direction is pressed
SHIPPING LIST
Accessory Shield for Bluno x1
