Description
Description:

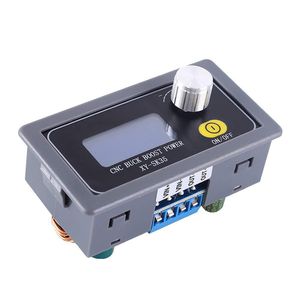

XY-SK35 is a DC adjustable constant voltage constant current automatic buck-boost power supply module with LCD display.HD display input voltage and output voltage, current, power, display status, capacity, energy and time.Adjustable stable output voltage and current.Set output current to meet the demand.It can be used as ordinary buck power supply module, charger and LED constant current driver.Simple and efficient, practical. It supports solar charging and can be connected to solar battery.
Features:
1>.High quality heat sink
2>.Multiple parameters are displayed simultaneous
3>.Enabled/disabled output
4>.Automatic buck/boost voltage
5>.Constant voltage constant current output
6>.Solar charging
7>.Lock output current
8>.Support anti-reverse protection
9>.Support anti-backflow protection
10>.Support output short circuit protection
11>.Support over-voltage protection
12>.Support over-current protection
13>.Support over power protection
14>.Support over temperature protection
15>.Support display input voltage
16>.Support display output voltage, current, power
17>.Support working status indicator
Parameters:
1>.Product Name:XY-SK35 Step UP Down Power Supply Module
2>.Product Number:XY-SK35
3>.Working Voltage:DC 5V-30V
4>.Output Voltage:DC 0.6V-30V
5>.Output Power:50W(Max and need fan.Default 35W)
6>.Voltage Display Precision:0.5%
7>.Voltage Display Resolution:0.01V
8>.Current Display Precision:0.8%
9>.Voltage Display Resolution:0.001A
10>.Conversion efficiency:About 88%
11>.Anti-reverse Protection:Yes
12>.Anti-backflow Protection:Yes
13>.Short Circuit Protection:Yes
14>.Work frequency:180KHz
15>.Over-temperature Protection:100℃
16>.Working Temperature range:-20℃~100℃
17>.Working Humidity range:0%-95%RH
18>.Size:79*43*48mm
XY-SK35 is a DC adjustable constant voltage constant current automatic buck-boost power supply module with LCD display.HD display input voltage and output voltage, current, power, display status, capacity, energy and time.Adjustable stable output voltage and current.Set output current to meet the demand.It can be used as ordinary buck power supply module, charger and LED constant current driver.Simple and efficient, practical. It supports solar charging and can be connected to solar battery.
Features:
1>.High quality heat sink
2>.Multiple parameters are displayed simultaneous
3>.Enabled/disabled output
4>.Automatic buck/boost voltage
5>.Constant voltage constant current output
6>.Solar charging
7>.Lock output current
8>.Support anti-reverse protection
9>.Support anti-backflow protection
10>.Support output short circuit protection
11>.Support over-voltage protection
12>.Support over-current protection
13>.Support over power protection
14>.Support over temperature protection
15>.Support display input voltage
16>.Support display output voltage, current, power
17>.Support working status indicator
Parameters:
1>.Product Name:XY-SK35 Step UP Down Power Supply Module
2>.Product Number:XY-SK35
3>.Working Voltage:DC 5V-30V
4>.Output Voltage:DC 0.6V-30V
5>.Output Power:50W(Max and need fan.Default 35W)
6>.Voltage Display Precision:0.5%
7>.Voltage Display Resolution:0.01V
8>.Current Display Precision:0.8%
9>.Voltage Display Resolution:0.001A
10>.Conversion efficiency:About 88%
11>.Anti-reverse Protection:Yes
12>.Anti-backflow Protection:Yes
13>.Short Circuit Protection:Yes
14>.Work frequency:180KHz
15>.Over-temperature Protection:100℃
16>.Working Temperature range:-20℃~100℃
17>.Working Humidity range:0%-95%RH
18>.Size:79*43*48mm
Adjustable CCCV Step UP Down Voltage Converter DC-DC 5V 12V 24V Automatic Buck Boost Power Supply Module Solar Charging
Current Price
$12.99
Average
$12.99
Min Price
$12.99
Max Price
$12.99
Description
Description:
XY-SK35 is a DC adjustable constant voltage constant current automatic buck-boost power supply module with LCD display.HD display input voltage and output voltage, current, power, display status, capacity, energy and time.Adjustable stable output voltage and current.Set output current to meet the demand.It can be used as ordinary buck power supply module, charger and LED constant current driver.Simple and efficient, practical. It supports solar charging and can be connected to solar battery.
Features:
1>.High quality heat sink
2>.Multiple parameters are displayed simultaneous
3>.Enabled/disabled output
4>.Automatic buck/boost voltage
5>.Constant voltage constant current output
6>.Solar charging
7>.Lock output current
8>.Support anti-reverse protection
9>.Support anti-backflow protection
10>.Support output short circuit protection
11>.Support over-voltage protection
12>.Support over-current protection
13>.Support over power protection
14>.Support over temperature protection
15>.Support display input voltage
16>.Support display output voltage, current, power
17>.Support working status indicator
Parameters:
1>.Product Name:XY-SK35 Step UP Down Power Supply Module
2>.Product Number:XY-SK35
3>.Working Voltage:DC 5V-30V
4>.Output Voltage:DC 0.6V-30V
5>.Output Power:50W(Max and need fan.Default 35W)
6>.Voltage Display Precision:0.5%
7>.Voltage Display Resolution:0.01V
8>.Current Display Precision:0.8%
9>.Voltage Display Resolution:0.001A
10>.Conversion efficiency:About 88%
11>.Anti-reverse Protection:Yes
12>.Anti-backflow Protection:Yes
13>.Short Circuit Protection:Yes
14>.Work frequency:180KHz
15>.Over-temperature Protection:100℃
16>.Working Temperature range:-20℃~100℃
17>.Working Humidity range:0%-95%RH
18>.Size:79*43*48mm
XY-SK35 is a DC adjustable constant voltage constant current automatic buck-boost power supply module with LCD display.HD display input voltage and output voltage, current, power, display status, capacity, energy and time.Adjustable stable output voltage and current.Set output current to meet the demand.It can be used as ordinary buck power supply module, charger and LED constant current driver.Simple and efficient, practical. It supports solar charging and can be connected to solar battery.
Features:
1>.High quality heat sink
2>.Multiple parameters are displayed simultaneous
3>.Enabled/disabled output
4>.Automatic buck/boost voltage
5>.Constant voltage constant current output
6>.Solar charging
7>.Lock output current
8>.Support anti-reverse protection
9>.Support anti-backflow protection
10>.Support output short circuit protection
11>.Support over-voltage protection
12>.Support over-current protection
13>.Support over power protection
14>.Support over temperature protection
15>.Support display input voltage
16>.Support display output voltage, current, power
17>.Support working status indicator
Parameters:
1>.Product Name:XY-SK35 Step UP Down Power Supply Module
2>.Product Number:XY-SK35
3>.Working Voltage:DC 5V-30V
4>.Output Voltage:DC 0.6V-30V
5>.Output Power:50W(Max and need fan.Default 35W)
6>.Voltage Display Precision:0.5%
7>.Voltage Display Resolution:0.01V
8>.Current Display Precision:0.8%
9>.Voltage Display Resolution:0.001A
10>.Conversion efficiency:About 88%
11>.Anti-reverse Protection:Yes
12>.Anti-backflow Protection:Yes
13>.Short Circuit Protection:Yes
14>.Work frequency:180KHz
15>.Over-temperature Protection:100℃
16>.Working Temperature range:-20℃~100℃
17>.Working Humidity range:0%-95%RH
18>.Size:79*43*48mm
Price will be lower
in next 2 weeks
in next 2 weeks
According to the data, price will be lower in next two weeks, so not waste your money and track better price!
Product review & video
good morning all today i have this it is a very nice looking buck boost converter so i'm going to put it through its cases try it out see what it does see what it does badly see what it does well so there it is it's a dc or it's a bag of bits there we'll have a look at that in a moment it's a dc to dc converter uh oh this is the one without the fan but clearly it can have a fan that's interesting i thought i bought the more expensive one obviously not uh v in plus v and minus v out now the cc and cv on this are 10 turn potentiometers but they have these little knobs on them so this is essentially a manually controlled current and voltage unit but it also has a sort of minimal digital interface there's a set button there's a big display i don't quite know what probably lcd and there's an on off button so you can control the output enable it and disable it uh can you also perhaps set over
