Description
Specifications of Camera:
CCD: 1/3" Sony SUPER HAD II CCD
Pixel: NTSC: 768(H)×494(V)
TV System: NTSC
Resolution: 650TVL(b/w), 600tvl(color)
Synchronization : internal synchronize
Shutter Speed: (CCD IRIS) NTSC: 1/60~1/100000 sec
Noise: > 60 (AGC OFF)
Video Out: 75ohm, synchronize
Min. Illumination: 0.01Lux
Auto Gain: Off/Low/Mid/High
Back Light Compensation (BLC): Off /Back light compensation/ Strong light suppression
Private shading (PRIVACY): 1~8 private shading area
Motion Detection (MD): On/ Off (Multi level sensitivity settable)
Auto White Balance: Manual / Auto / Auto track
Mirror: Horizontal Mirror optional
Negative: Positive / Negative optional
Color to B&W: Auto
DNR: 2DNR; WDR: D-WDR
Day / Night Shift: Auto/ Color/ B&W
Menu (OSD): English menu
White Dot Repair: Support
Image Adjustment: Support
Camera Title: Support
Power Requirement: DC5V~22V
Working Humidity: 20~80%
Storage Temperature: -40 ℃ ~ +60 ℃
Storage Humidity: 20~95%
Dimensions(mm): 25X25(W*L)
Power Consumption: 70mA
Specification of Transmitter:
Video Format: NTSC
Output Impedance: 50 Ohm
Antenna connector: RP-SMA connector
Supply current: 280 mA
Operating Temperature -10 +85℃
Video Band Width: 0-8.0 MHz
Audio carrier Frequency: 6.5 MHz
Video Input Level: 0.8,1.0,1.2 Vp-p
Video Input Impedance: 75 Ohm
Audio Input Level: 0.5 ,2.0 Vp-p
Audio Input Impedance: 10K Ohm
Package includes:
1x 5.8G FPV transmitter
1x 600TVL Camera
2x Cables
1x antenna
1x Connector and cable set
1x Manual
CCD: 1/3" Sony SUPER HAD II CCD
Pixel: NTSC: 768(H)×494(V)
TV System: NTSC
Resolution: 650TVL(b/w), 600tvl(color)
Synchronization : internal synchronize
Shutter Speed: (CCD IRIS) NTSC: 1/60~1/100000 sec
Noise: > 60 (AGC OFF)
Video Out: 75ohm, synchronize
Min. Illumination: 0.01Lux
Auto Gain: Off/Low/Mid/High
Back Light Compensation (BLC): Off /Back light compensation/ Strong light suppression
Private shading (PRIVACY): 1~8 private shading area
Motion Detection (MD): On/ Off (Multi level sensitivity settable)
Auto White Balance: Manual / Auto / Auto track
Mirror: Horizontal Mirror optional
Negative: Positive / Negative optional
Color to B&W: Auto
DNR: 2DNR; WDR: D-WDR
Day / Night Shift: Auto/ Color/ B&W
Menu (OSD): English menu
White Dot Repair: Support
Image Adjustment: Support
Camera Title: Support
Power Requirement: DC5V~22V
Working Humidity: 20~80%
Storage Temperature: -40 ℃ ~ +60 ℃
Storage Humidity: 20~95%
Dimensions(mm): 25X25(W*L)
Power Consumption: 70mA
Specification of Transmitter:
Video Format: NTSC
Output Impedance: 50 Ohm
Antenna connector: RP-SMA connector
Supply current: 280 mA
Operating Temperature -10 +85℃
Video Band Width: 0-8.0 MHz
Audio carrier Frequency: 6.5 MHz
Video Input Level: 0.8,1.0,1.2 Vp-p
Video Input Impedance: 75 Ohm
Audio Input Level: 0.5 ,2.0 Vp-p
Audio Input Impedance: 10K Ohm
Package includes:
1x 5.8G FPV transmitter
1x 600TVL Camera
2x Cables
1x antenna
1x Connector and cable set
1x Manual

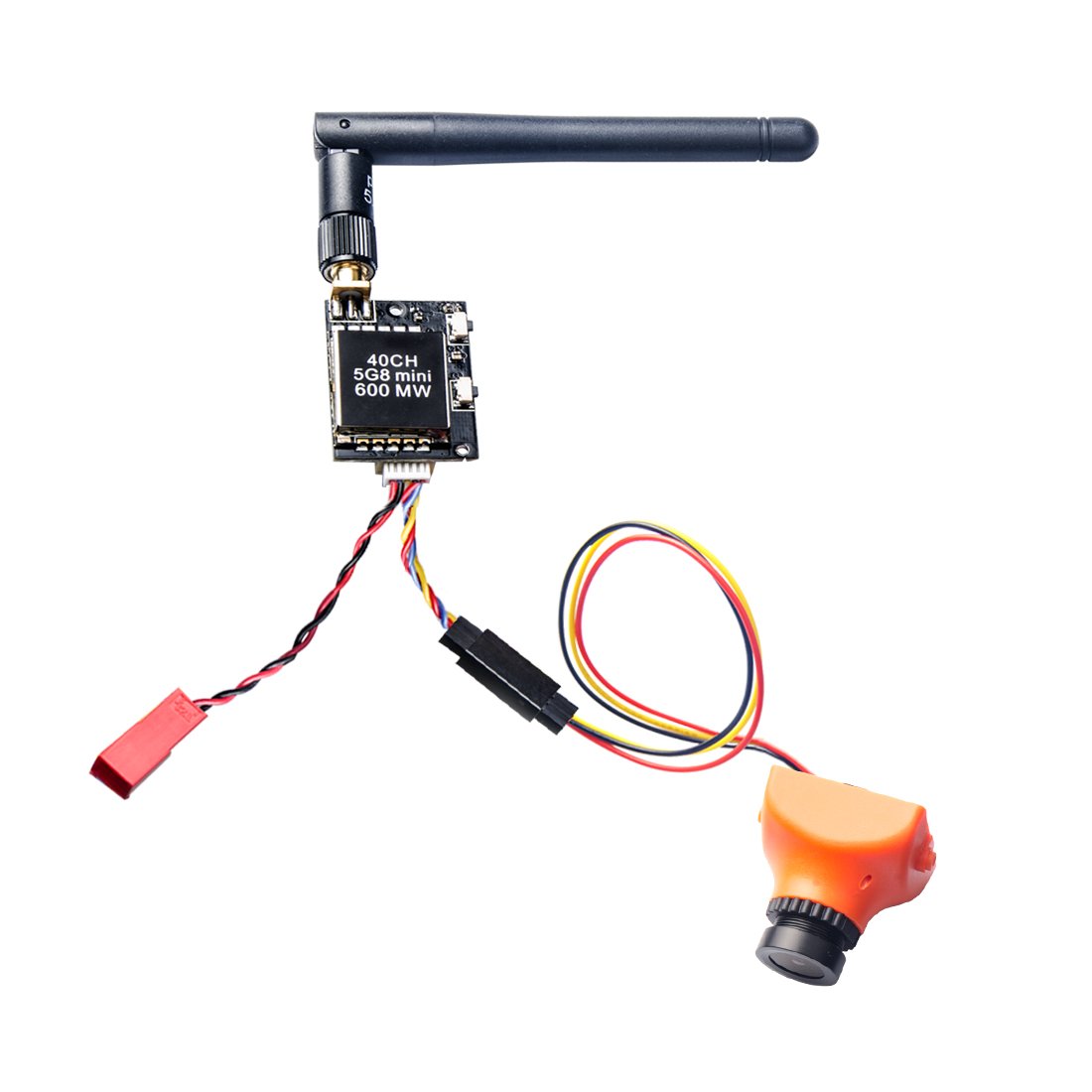

AKK KC02 600mW FPV Transmitter with 600TVL 2.8MM 120 Degree High Picture Quality Sony CCD Camera for FPV Multicopter
Price is below average
Current Price
$35.99
Average
$37.39
Min Price
$35.99
Max Price
$39.99
