Description
Specifications:
Type:
HX-3S-FL25A-A(with balance)
Size:
with balance: 56*45*4.0mm/2.20*1.77*0.16inch
Over voltage range: 4.25-4.35v±0.05v
Over discharge voltage range: 2.3-3.0v±0.05v
Maximum operating current: 0-15A(with balance)
Maximum transient current: 20-25A(with balance)
Quiescent current: < 30uA
Internal resistance: < 100mΩ
Charging voltage: 12.6v - 13V
Working temperature: -40~+50℃
Storage condition: -40~ +80℃
Effective life: >30000h
Short circuit protection: Yes, delayed self recovery
Balance current(with balance): 45mA
The component included:
with balance:1 pcs 2110-CB protection chip, 1 pcs BB3A ,4 pcs AOD472/AOD452
Test point instructions(with balance): S1 S2 short circuit P + P - will output voltage, indicating that all MOS protection is normal, adding a constant temperature detection can extend the temperature protection function.
Package Included:
1 x PCB Protection Board(have assembled)
Note:
1.Do not mix the good battery and poor battery to use.
2.The internal resistance of 3 battery capacity are closer will be better.
3. Please buyers know the professional knowledge of this module before buying.
Type:
HX-3S-FL25A-A(with balance)
Size:
with balance: 56*45*4.0mm/2.20*1.77*0.16inch
Over voltage range: 4.25-4.35v±0.05v
Over discharge voltage range: 2.3-3.0v±0.05v
Maximum operating current: 0-15A(with balance)
Maximum transient current: 20-25A(with balance)
Quiescent current: < 30uA
Internal resistance: < 100mΩ
Charging voltage: 12.6v - 13V
Working temperature: -40~+50℃
Storage condition: -40~ +80℃
Effective life: >30000h
Short circuit protection: Yes, delayed self recovery
Balance current(with balance): 45mA
The component included:
with balance:1 pcs 2110-CB protection chip, 1 pcs BB3A ,4 pcs AOD472/AOD452
Test point instructions(with balance): S1 S2 short circuit P + P - will output voltage, indicating that all MOS protection is normal, adding a constant temperature detection can extend the temperature protection function.
Package Included:
1 x PCB Protection Board(have assembled)
Note:
1.Do not mix the good battery and poor battery to use.
2.The internal resistance of 3 battery capacity are closer will be better.
3. Please buyers know the professional knowledge of this module before buying.

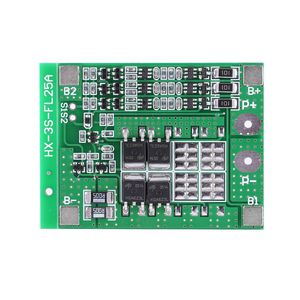

Akozon Battery Protection Board 3 Series 12V 15A Li-ion Lithium Battery 18650 Charger PCB BMS Protection Board(with Balance)
Price is below average
Current Price
$4.12
Average
$7.2
Min Price
$4.12
Max Price
$10.59
Price dynamics
43%
Description
Specifications:
Type:
HX-3S-FL25A-A(with balance)
Size:
with balance: 56*45*4.0mm/2.20*1.77*0.16inch
Over voltage range: 4.25-4.35v±0.05v
Over discharge voltage range: 2.3-3.0v±0.05v
Maximum operating current: 0-15A(with balance)
Maximum transient current: 20-25A(with balance)
Quiescent current: < 30uA
Internal resistance: < 100mΩ
Charging voltage: 12.6v - 13V
Working temperature: -40~+50℃
Storage condition: -40~ +80℃
Effective life: >30000h
Short circuit protection: Yes, delayed self recovery
Balance current(with balance): 45mA
The component included:
with balance:1 pcs 2110-CB protection chip, 1 pcs BB3A ,4 pcs AOD472/AOD452
Test point instructions(with balance): S1 S2 short circuit P + P - will output voltage, indicating that all MOS protection is normal, adding a constant temperature detection can extend the temperature protection function.
Package Included:
1 x PCB Protection Board(have assembled)
Note:
1.Do not mix the good battery and poor battery to use.
2.The internal resistance of 3 battery capacity are closer will be better.
3. Please buyers know the professional knowledge of this module before buying.
Type:
HX-3S-FL25A-A(with balance)
Size:
with balance: 56*45*4.0mm/2.20*1.77*0.16inch
Over voltage range: 4.25-4.35v±0.05v
Over discharge voltage range: 2.3-3.0v±0.05v
Maximum operating current: 0-15A(with balance)
Maximum transient current: 20-25A(with balance)
Quiescent current: < 30uA
Internal resistance: < 100mΩ
Charging voltage: 12.6v - 13V
Working temperature: -40~+50℃
Storage condition: -40~ +80℃
Effective life: >30000h
Short circuit protection: Yes, delayed self recovery
Balance current(with balance): 45mA
The component included:
with balance:1 pcs 2110-CB protection chip, 1 pcs BB3A ,4 pcs AOD472/AOD452
Test point instructions(with balance): S1 S2 short circuit P + P - will output voltage, indicating that all MOS protection is normal, adding a constant temperature detection can extend the temperature protection function.
Package Included:
1 x PCB Protection Board(have assembled)
Note:
1.Do not mix the good battery and poor battery to use.
2.The internal resistance of 3 battery capacity are closer will be better.
3. Please buyers know the professional knowledge of this module before buying.
