Specifications:

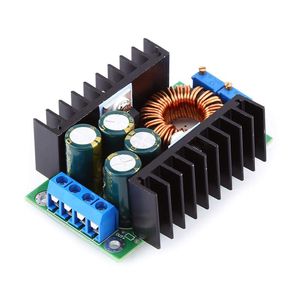

Type: Non-isolated step-down module (DC-DC)
Input Voltage:DC 7V to 40V
Output Voltage:DC 0.8V to 28V (continuously adjustable)
Output Current:0.2A to 12A(adjustable, <6A when 24V to 12V), 10A is suggested
Min. Voltage Difference:1V
Max. Output Power:300W
Max. Conversion Efficiency:95%
Frequency:300KHZ
Output Ripple:20M bandwidth
Output Short Circuit Protection:Yes (constant current)
Reverse Electrode Protection:No
Output Backflow Protection:No
Wiring Method:Terminals
No-load Current:20mA (24V switch, 12v)
Load Regulation:± 1% (constant)
Voltage Regulation:±1%
Dynamic Response Speed:5%200uS
Potentiometer Adjustment
Clockwise to increase and counterclockwise to reduce
Operating Temperature:-40℃ to +85℃
Indicator Light:Red color charging; green color charging finished or no load
Constant Current and Constant Temperature Accuracy:<5%, 5A from 25℃ to 60℃
Output Short Circuit Protection:Yes (constant current)
Reverse Input Protection:No
Output Backflow Protection:No

Size：64 x 47 x 23.5mm / 2.52 x 0.85 x 0.92"

Package Includes:

1 x Module
