Description

Specification:

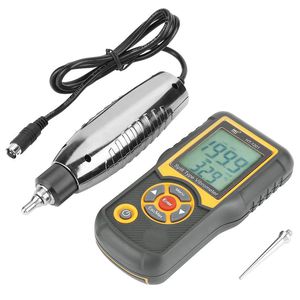

Model: HT-1201
Color: Grey
Vibration acquisition: piezoceramic accelerometer (shearing type )
LCD display: three and a half digit display

Measurement range:
Acceleration: 0.1-199.9m/s2 (peak value)
Speed: 0.1-199.9mm/s (effective value)
Displacement: 0.001-1.999mm (effective value)
Measurement accuracy: ±(5%+2digits)

Frequency range:
Acceleration: 15Hz - 1KHz (LO), 1KHz - 10KHz (HI)
Speed: 15Hz - 1KHz (LO)
Displacement: 15Hz - 1KHz (LO)
Temperature measurement 0℃ - 60℃
Temperature accuracy: ±2℃
Automatic power-off time: 4 minutes
Power supply: 3 x AA battery (NOT included)
Operation temperature: 0℃ - 45℃
Operation humidity: 20%RH - 90%RH(No condensation)
Storage temperature: -20℃ - 60℃
Size: Approx. 150*70*32mm/5.9*2.8*1.3inch
Weight: Approx. 737g / 26oz

Package List:
1 x Vibration Meter
1 x Probe
1 x Handle
1 x Plastic Box
1 x User Manual

Note:
Don't dismantle the casing of the instrument.
Don't use the device in the environment with explosive gas, steam and damp environment.
When measurement is carried out near rotating part of the machine, operate carefully to avoid being pulled into the machine.
Please use dry cloth to wipe the instrument case at the time of cleaning.
Don't use corrosive detergents.
Please take out the battery if the instrument is not in use for a long time or the storage temperature is higher than 50℃ to avoid corrosion to the instrument due to battery leakage.
Please allow small size error due to manual measurement. Thanks for your understanding.
