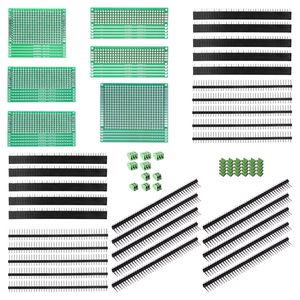

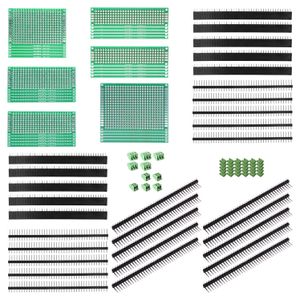

Components Features:

PCB Board features and info:

-  10 pcs 2 x 8 cm (168 solder points) with a matrix of   6 by 28 Plated Through Hole (PTH)

-  10 pcs 3 x 7 cm (240 solder points) with a matrix of 10 by 24 PTH

-  5 pcs 4 x 6 cm (280 solder points) matrix of 14 by 20 PTH

-  5 pcs 5 x 7 cm (432 solder points) matrix of 18 by 24 PTH

★ ★ Header Sockets

-  10 pcs 1 x 40 Pin Male Header Pin

-  10 pcs 1 x 40 Pin Female Header Pin

-  10 pcs 1 x 40 Pin Right Angle Male Header Pin

Pitch 0.1'/2.54mm; pin length 11.5mm / 0.45';

★ ★ Jumper Caps

- 30 pcs Jumper caps

★ ★ Terminal Blocks

- 5 pcs 2 Pole Terminal, (2.54-2P)

- 5 pcs 3 Pole Terminal, (2.54-3P)

★ Electrical Specification

Rated Voltage: 150V/AC; Rated current: 6A; Contact Resistance: 20m Ohm MAX; Insulation; Resistance: 5000M Ohm/1000V; Dielectric Strength: 1250V/1 min

★ Mechanical Specification

Temp range: -40F ~ +105C; Torque: 0.1 Nm; Wire range: 26~18AWG; MAX Soldering: +250C for 5 Sec; Strip length: 4.5mm; Pitch 0.1'/2.54mm Terminal blocks; Poles: 2P, 3P

★ Part and Material

Screw: M1.5 Steel Zinc plated; Wire guard: Brass, Ni plated; Pin header: Brass, Tin plated; Housing: PA66, UL94V-0
