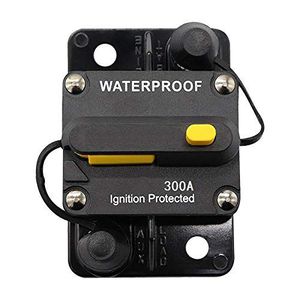

◇Waterproof Manual Reset Circuit Breaker
◇Power Rating: 300 Ampere
◇Yellow manual reset button
◇Surface Mount
◇Housing is thermalplastic UL rated 94V0
◇Splash and dust proof at IP67 grade
◇Operating Temperature: -32C to 82C (-25F to 180F).
◇Storage Temperature: -34C to 149C (-30F to 300F).
◇Stud Size: 1/4"-28 Meet S.A.E. J1625, J1171, UL1500 (Ignition Protected).
◇Surface Mount, protective stud insulator included.
Features:
◇Water resistant housing.
◇High Current Circuit Breaker, to protect to your system.
◇Unique Push Button Reset can also be used as a Kill Switch.
◇Self-test, manual control and easy to operate with manual reset arm.
◇Prevents excessive current and stops power surges from damaging Amps.
◇Can be mounted on Panel or Firewall.
◇Typically used in trucks, buses, RVs and marine applications; also used in battery charges and DC sound system.
◇Application: Typically used in auxiliary and accessory circuits for Boat, Marine, RV and ATV applications. Also can used as an on/off button switch for the battery or DC sound system.
Packing list:
1 x 300 Amp Circuit Breaker with Manual Reset
