Description
Specifications:
Charging voltage:12.6v ~ 13.6v
Over Charge voltage:4.25±0.05v
Over Discharge voltage: 2.5v±0.05v
Balance Current: 45mA
Continuous discharge current (upper limit): 25A (if the cooling environment is not good, please reduce the load current )
Internal resistance: Less than 100mΩ
Working temperature:-40 ~ +50Celsius
Storage Temperature:-40 ~ +80Celsius
Short Circuit Protection: Protectable, Delayed self-recovery
Effective life: more than30000h
Size:56 mm×45 mm×4.0mm/ 2.20″ ×1.77″×0.16″
Detailed electrical parameters are shown in the picture
Suitable for:
1.Suitable for lithium batteries with nominal voltage of 3.7V and full voltage of 4.2V (including 18650, 26650, polymer lithium batteries, no size limit)
2.Suitable for Massager battery pack, LED light backup power supply, 12V electronic products, solar street light battery pack, monitor standby power supply, etc.
3.This protection board can not be used for lithium iron phosphate battery, xenon lamp, hand drill battery pack, electric fish battery pack, electric bicycle battery pack, baby car battery, 775 (4A) or above motor, 1W fisheye LED lamp
Attention:
1.Strictly according to the diagram wiring: 0V(B-)/3.7V(B1)/7.4V(B2)/11.1V(B+),Otherwise it will cause damage to the chip.
2.After the line is connected, Need to charge first, then have output.
3.Do not mix the good battery and poor battery to use.
4.The internal resistance of 3 battery capacity are closer will be better.
Package inlcuded:
2x 3S 25A lithium Battery Protection Board
Charging voltage:12.6v ~ 13.6v
Over Charge voltage:4.25±0.05v
Over Discharge voltage: 2.5v±0.05v
Balance Current: 45mA
Continuous discharge current (upper limit): 25A (if the cooling environment is not good, please reduce the load current )
Internal resistance: Less than 100mΩ
Working temperature:-40 ~ +50Celsius
Storage Temperature:-40 ~ +80Celsius
Short Circuit Protection: Protectable, Delayed self-recovery
Effective life: more than30000h
Size:56 mm×45 mm×4.0mm/ 2.20″ ×1.77″×0.16″
Detailed electrical parameters are shown in the picture
Suitable for:
1.Suitable for lithium batteries with nominal voltage of 3.7V and full voltage of 4.2V (including 18650, 26650, polymer lithium batteries, no size limit)
2.Suitable for Massager battery pack, LED light backup power supply, 12V electronic products, solar street light battery pack, monitor standby power supply, etc.
3.This protection board can not be used for lithium iron phosphate battery, xenon lamp, hand drill battery pack, electric fish battery pack, electric bicycle battery pack, baby car battery, 775 (4A) or above motor, 1W fisheye LED lamp
Attention:
1.Strictly according to the diagram wiring: 0V(B-)/3.7V(B1)/7.4V(B2)/11.1V(B+),Otherwise it will cause damage to the chip.
2.After the line is connected, Need to charge first, then have output.
3.Do not mix the good battery and poor battery to use.
4.The internal resistance of 3 battery capacity are closer will be better.
Package inlcuded:
2x 3S 25A lithium Battery Protection Board

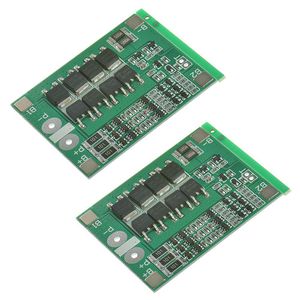

Anmbest 2PCS 3S 11.1V/12V/12.6V 25A 18650 Charger PCB BMS Overcurrent OverCharge Protection Board Li-ion Lithium Battery Charger Lipo Cell Module with Balancer Equalizer
Price is below average
Current Price
$9.79
Average
$10.17
Min Price
$9.79
Max Price
$10.99
Price dynamics
4%
