100% Brand New and High Quality.
Shape: Same as the picture show

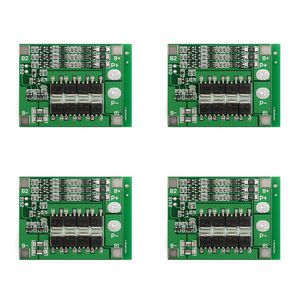

1. Type: Lithium Battery Protection Board
2. Size: 60mm x 45mm
3. Continuous discharge current: 25A
4. Instantaneous discharge current: 75A
5. Charging voltage: lithium battery charger 12.6V (switching power supply 13-16V)
6. Charging current: 25A max
7. Power balance voltage: 4.2±0.05V
8. Power balance current: 45mA
9. Over charge voltage range: 4.25-4.35V±0.05V
10. Over discharge voltage range: 2.3-3.0V±0.05V
11. Over current protect voltage: 150mV
12. Maximum operating current: 0-25A
13. Maximum transient current: 35-40A
14. Quiescent current: <30uA
15. Internal resistance: <100mΩ
16. Working temperature:-40℃ ~ +50℃
17. Storage condition:-40℃ ~ +80℃
18. Effective life: >30000h

Package included:
4Pcs

(We have a lot Stock.if you need more. please contact us.)
