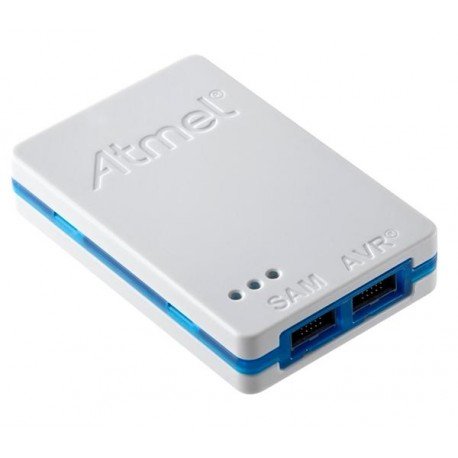

Atmel-ICE Debugger and Programmer Full Kit

well hello everyone then today's video I'm going to show you step-by-step instructions of how to hook up and use the app melt ice debugger I'm also going to show you the basics of the at mil studios debugger interface has a lot to cover so we better get started stand by and you'll notice Atmel does not follow the conventional wire scheme of a computer where the red wire is pin 1 red wire in this case is pin 3 pin 1 us to the right of that connector I'll show you in the diagram here you can see pins go 1 3 5 2 4 6 you just have to remember when you plug it in pin 1 as always to the right of the little tab sticking out there and we'll plug the connector onto the board and now we'll attach the power cord to the circuit board also now if you just bought an ad melt ice and you're going to plug it in for the first time make sure that you install Atmel studio first otherwise windows will look
