Description
Specification
Chip; HiSilicon-Hi3516EV300
Sensor: 1/3 5.0MP SONY IMX335 CMOS
Output Pixel: 2592x1520@22fps 2592x1944@15fps
Lens: 18X optical zoom 5.35mm~96.3mm lens
Iris:F1.6~F2.4
Min. illumination: Color:0.05Lux\ B/W: 0.01Lux
D/N:IR-Cut
AGC: Auto/manual
WB:Auto/manual/indoor/outdoor
Shutter: 1/2 - 1/20,000s
S/N Ratio: ≥50dB
Communications Protocol: TCP/IP, HTTP, NTP, IGMP, DHCP, UDP, SMTP, RTP, RTSP, ARP, DDNS, DNS, HTTPS, P2P
Software Control: IE, CMS, Management Platform
Mobile View(optional): Support Windows, Symbian, iPhone platform smartphone
Horizontal Rotation Speed: 0°/s-60°/s
Horizontal Rotation Range: 360°
Tilt Rotation Speed:0°/s-45°/s
Auto Flip:Horizontal 180°, Vertical 90°
A-B Scan: User programmable
A-B Scan Speed : 1-9 levels setting available
Dwell Preset: 1-60s interval available
Preset Points:254
Go to Preset Speed: 01-64 levels available
PWR On Action: Memory/Tour 1/360° scan/A-B scan/Preset 1-8/None
Park Time: 01-60mins available
Guard Tours:3 groups
Video compression: H.264/H.265/M-JPEG
Guard Points:Max.16 points, dwell time user selectable
Operating Temperature:Outdoor: -40°~ +60°
Operation Menu: English
Pan and Tilt Position Display:Support
Auto Control IR LED: PWM
LEDs: Array 42Mil
IR Distance:Up to 300ft
Support Ambient Light Detection:IR illumination on 1-9 grades selectable;
Humidity:≤95% Non condensing
Power: DC12V 3A
Consumption:≤15W
Lightning Protection: Transient voltage 6000V
Related Validation:IP66, CE, FCC, RoHs
PACKING LIST;
1 x HD-IP Medium Speed Dome PTZ Security Camera with Camera Bracket(Standard Wall)
1 x User Manual
1 x CD
1 x Screws
1 x Power adapter
Having any problems? Pls Contact support@inesun.cn
We can send you the video of how to use it
Chip; HiSilicon-Hi3516EV300
Sensor: 1/3 5.0MP SONY IMX335 CMOS
Output Pixel: 2592x1520@22fps 2592x1944@15fps
Lens: 18X optical zoom 5.35mm~96.3mm lens
Iris:F1.6~F2.4
Min. illumination: Color:0.05Lux\ B/W: 0.01Lux
D/N:IR-Cut
AGC: Auto/manual
WB:Auto/manual/indoor/outdoor
Shutter: 1/2 - 1/20,000s
S/N Ratio: ≥50dB
Communications Protocol: TCP/IP, HTTP, NTP, IGMP, DHCP, UDP, SMTP, RTP, RTSP, ARP, DDNS, DNS, HTTPS, P2P
Software Control: IE, CMS, Management Platform
Mobile View(optional): Support Windows, Symbian, iPhone platform smartphone
Horizontal Rotation Speed: 0°/s-60°/s
Horizontal Rotation Range: 360°
Tilt Rotation Speed:0°/s-45°/s
Auto Flip:Horizontal 180°, Vertical 90°
A-B Scan: User programmable
A-B Scan Speed : 1-9 levels setting available
Dwell Preset: 1-60s interval available
Preset Points:254
Go to Preset Speed: 01-64 levels available
PWR On Action: Memory/Tour 1/360° scan/A-B scan/Preset 1-8/None
Park Time: 01-60mins available
Guard Tours:3 groups
Video compression: H.264/H.265/M-JPEG
Guard Points:Max.16 points, dwell time user selectable
Operating Temperature:Outdoor: -40°~ +60°
Operation Menu: English
Pan and Tilt Position Display:Support
Auto Control IR LED: PWM
LEDs: Array 42Mil
IR Distance:Up to 300ft
Support Ambient Light Detection:IR illumination on 1-9 grades selectable;
Humidity:≤95% Non condensing
Power: DC12V 3A
Consumption:≤15W
Lightning Protection: Transient voltage 6000V
Related Validation:IP66, CE, FCC, RoHs
PACKING LIST;
1 x HD-IP Medium Speed Dome PTZ Security Camera with Camera Bracket(Standard Wall)
1 x User Manual
1 x CD
1 x Screws
1 x Power adapter
Having any problems? Pls Contact support@inesun.cn
We can send you the video of how to use it

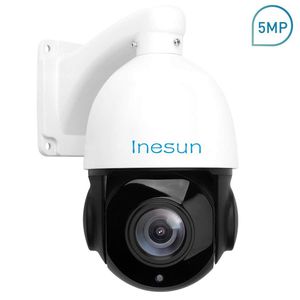

Inesun PTZ IP Security Camera 5 Megapixels Super HD 2592x1944 Pan Tilt 18X Optical Zoom H.264/H.265 Medium Speed Dome IP Camera 4.5 Inch Mini IP66 Waterproof Outdoor IR Camera Support Onvif 2.4
Price is below average
Current Price
$189
Average
$201.07
Min Price
$169.99
Max Price
$235
Price dynamics
6%
Description
Specification
Chip; HiSilicon-Hi3516EV300
Sensor: 1/3 5.0MP SONY IMX335 CMOS
Output Pixel: 2592x1520@22fps 2592x1944@15fps
Lens: 18X optical zoom 5.35mm~96.3mm lens
Iris:F1.6~F2.4
Min. illumination: Color:0.05Lux\ B/W: 0.01Lux
D/N:IR-Cut
AGC: Auto/manual
WB:Auto/manual/indoor/outdoor
Shutter: 1/2 - 1/20,000s
S/N Ratio: ≥50dB
Communications Protocol: TCP/IP, HTTP, NTP, IGMP, DHCP, UDP, SMTP, RTP, RTSP, ARP, DDNS, DNS, HTTPS, P2P
Software Control: IE, CMS, Management Platform
Mobile View(optional): Support Windows, Symbian, iPhone platform smartphone
Horizontal Rotation Speed: 0°/s-60°/s
Horizontal Rotation Range: 360°
Tilt Rotation Speed:0°/s-45°/s
Auto Flip:Horizontal 180°, Vertical 90°
A-B Scan: User programmable
A-B Scan Speed : 1-9 levels setting available
Dwell Preset: 1-60s interval available
Preset Points:254
Go to Preset Speed: 01-64 levels available
PWR On Action: Memory/Tour 1/360° scan/A-B scan/Preset 1-8/None
Park Time: 01-60mins available
Guard Tours:3 groups
Video compression: H.264/H.265/M-JPEG
Guard Points:Max.16 points, dwell time user selectable
Operating Temperature:Outdoor: -40°~ +60°
Operation Menu: English
Pan and Tilt Position Display:Support
Auto Control IR LED: PWM
LEDs: Array 42Mil
IR Distance:Up to 300ft
Support Ambient Light Detection:IR illumination on 1-9 grades selectable;
Humidity:≤95% Non condensing
Power: DC12V 3A
Consumption:≤15W
Lightning Protection: Transient voltage 6000V
Related Validation:IP66, CE, FCC, RoHs
PACKING LIST;
1 x HD-IP Medium Speed Dome PTZ Security Camera with Camera Bracket(Standard Wall)
1 x User Manual
1 x CD
1 x Screws
1 x Power adapter
Having any problems? Pls Contact support@inesun.cn
We can send you the video of how to use it
Chip; HiSilicon-Hi3516EV300
Sensor: 1/3 5.0MP SONY IMX335 CMOS
Output Pixel: 2592x1520@22fps 2592x1944@15fps
Lens: 18X optical zoom 5.35mm~96.3mm lens
Iris:F1.6~F2.4
Min. illumination: Color:0.05Lux\ B/W: 0.01Lux
D/N:IR-Cut
AGC: Auto/manual
WB:Auto/manual/indoor/outdoor
Shutter: 1/2 - 1/20,000s
S/N Ratio: ≥50dB
Communications Protocol: TCP/IP, HTTP, NTP, IGMP, DHCP, UDP, SMTP, RTP, RTSP, ARP, DDNS, DNS, HTTPS, P2P
Software Control: IE, CMS, Management Platform
Mobile View(optional): Support Windows, Symbian, iPhone platform smartphone
Horizontal Rotation Speed: 0°/s-60°/s
Horizontal Rotation Range: 360°
Tilt Rotation Speed:0°/s-45°/s
Auto Flip:Horizontal 180°, Vertical 90°
A-B Scan: User programmable
A-B Scan Speed : 1-9 levels setting available
Dwell Preset: 1-60s interval available
Preset Points:254
Go to Preset Speed: 01-64 levels available
PWR On Action: Memory/Tour 1/360° scan/A-B scan/Preset 1-8/None
Park Time: 01-60mins available
Guard Tours:3 groups
Video compression: H.264/H.265/M-JPEG
Guard Points:Max.16 points, dwell time user selectable
Operating Temperature:Outdoor: -40°~ +60°
Operation Menu: English
Pan and Tilt Position Display:Support
Auto Control IR LED: PWM
LEDs: Array 42Mil
IR Distance:Up to 300ft
Support Ambient Light Detection:IR illumination on 1-9 grades selectable;
Humidity:≤95% Non condensing
Power: DC12V 3A
Consumption:≤15W
Lightning Protection: Transient voltage 6000V
Related Validation:IP66, CE, FCC, RoHs
PACKING LIST;
1 x HD-IP Medium Speed Dome PTZ Security Camera with Camera Bracket(Standard Wall)
1 x User Manual
1 x CD
1 x Screws
1 x Power adapter
Having any problems? Pls Contact support@inesun.cn
We can send you the video of how to use it
Price will be lower
in next 2 weeks
in next 2 weeks
According to the data, price will be lower in next two weeks, so not waste your money and track better price!
Product review & video
hi there today we're unboxing a PTZ camera so this particular camera is a 4 megapixel camera power over ethernet obviously being PTZ you can pan tilt and zoom on there and what's quite amazing about it it's got 20 times optical zoom so quite looking forward to testing this one out and it's waterproof as well and has night vision and motion detection so let's have a quick look around the packaging simple packaging nothing too fancy their basic wording on there nothing too fancy mini speed dome camera and that's about it nothing else on there ok let's open up and see what we get in the packaging ok first of all got a CD probably some software on there to configure the device ok quick user manual it looks like speed down quick user manual details on installing it that's it simple as that I think more [Music] see what you get inside here okay so [Music] some fixtures looks like good quality
