Why It Is Quiet?
Mostly the range hood noise is the sound of air whooshing the steam away. The blower exhausts the air out, sucking the nearby air to one direction. For example, the house fan has bigger noise at higher speed, the sound is from the air collision, not the motor. High speed air collision is the cause of the powerful range hood.

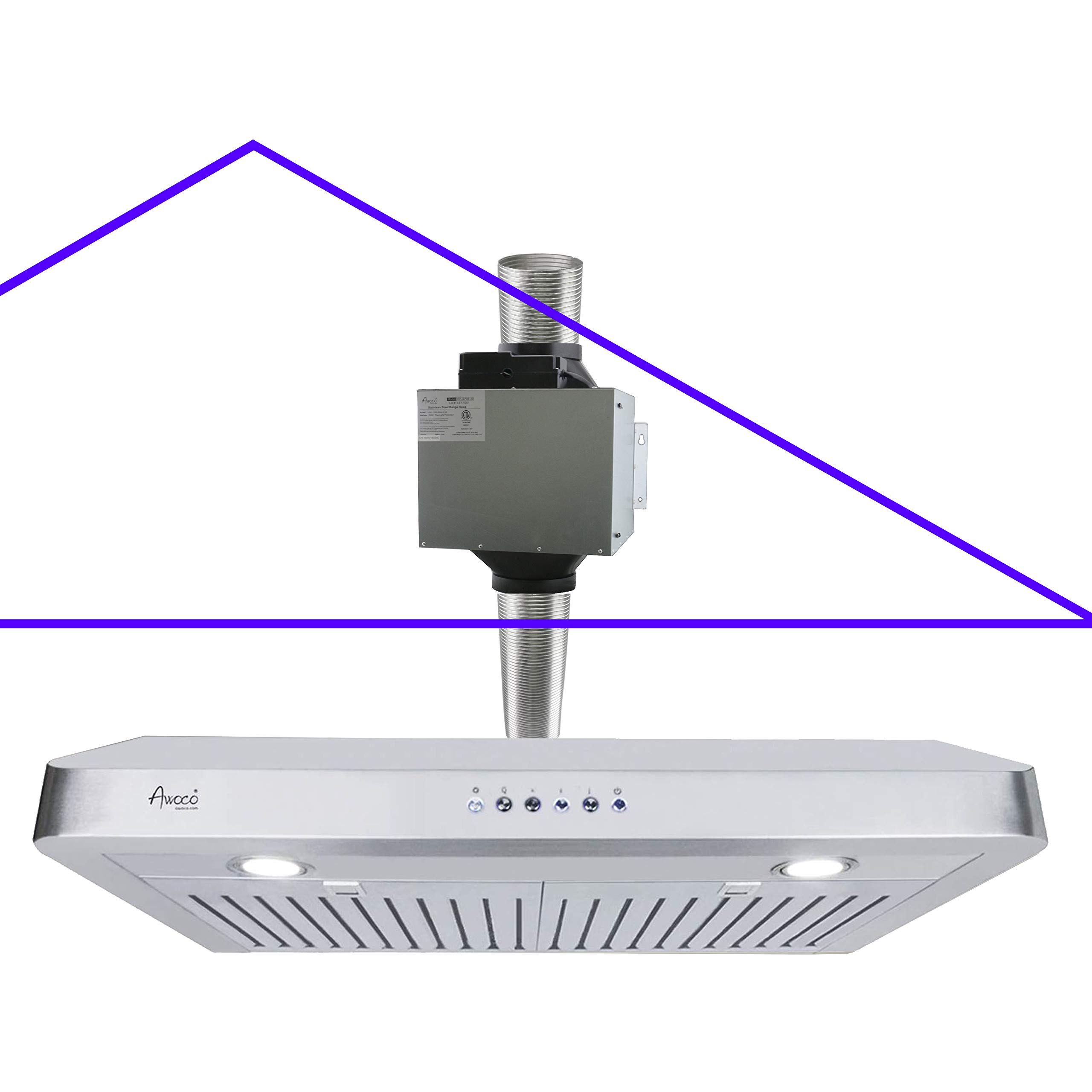

What if we move the air collision from the kitchen area to above the ceiling? The restaurant exhaust fans are on the roof; therefore, moving the blower to the attic is the solution for residential to eliminate the range hood noise. Same as the industrial inline blower, this Blower unit is in between the house exhaust vent and the range hood unit.
Outstanding Features:
1mm Thick High Quality Brushed Finish Stainless Steel.
High Quality Stainless Steel Baffle Filters Stainless steel baffle filters are adapted the concept from commercial baffle air filters, the grease is contained inside the filter trays, no oil cup needed.
Other Features & Specifications:
Mounting Type: Under Cabinet or Wall Mount for Hood unit; Attic lumber mounted for Blower unit Venting Type: 6" round TOP vent for Hood unit; 6" round vent in and out for Blower unit Hood Unit: 2 of 3W energy efficient cold bright LED Lights are bright enough to cover the whole cooktop. Blower Unit: 1 Motor and 7" Centrifugal Squirrel Cage Fan Wheel Power rating: 120V/60Hz, 110W Min /160W Max Noise levels: 40dB / 50dB / 56dB / 60dB.
Package includes:
36" hood unit 6" vent blower unit with 2 mounting brackets 3 of baffle filters User manual Mounting screws and electric nuts Note: 2 packages are included in the shipment.
