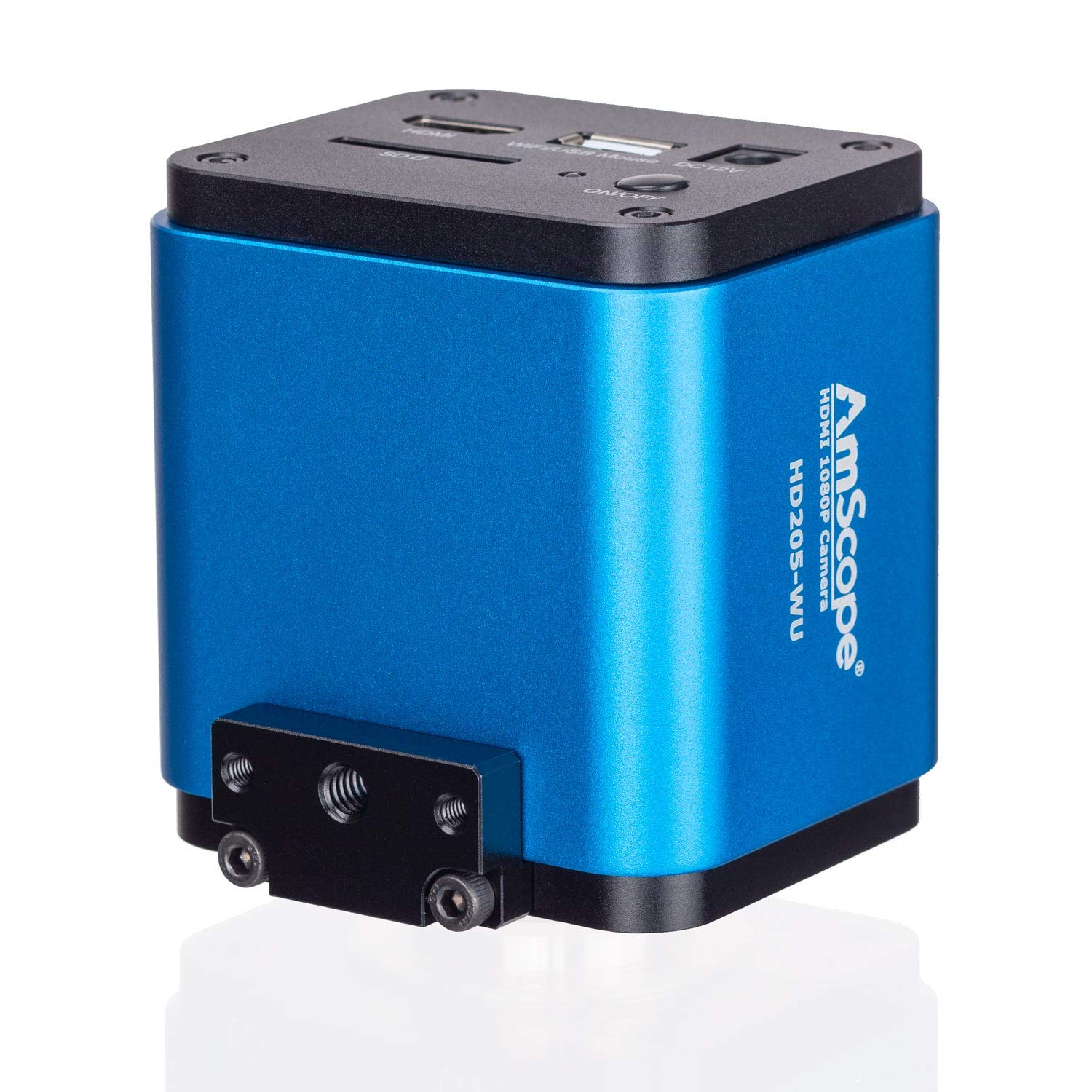

The HD-205-WU is an HDMI-capable digital camera, delivering 1080p video up to 60fps, and 5MP still images. The highly-sensitive digital sensor makes this camera ideal for low-light applications, including dark-field and fluorescence. Able to be used as a standalone recording device using Secure Digital memory, or as a WiFi camera on a networked computer, this is an extremely flexible imaging solution. The industry-standard C-mount design allows this camera to be connected directly to C-mount photo-ports, or used in conjunction with an array of optional lenses and adapters to mount to virtually any popular microscope line. For 23mm drop-in photo-ports, an optional (not included) 0.5X reduction lens is recommended.
Connected to an HDMI monitor or TV, 1080p live video can be viewed at a super-smooth 60fps. The included USB mouse allows you to make adjustments in the internal software for settings such as white-balance and exposure, and control recording functions. As an alternative solution, connect to the camera over WiFi for remote software control, with 25fps streaming. The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. For Mac and Linux, there is a lite version of the software which can capture video and still images, and includes limited processing features.
Camera Specifications:
- Sensor: Sony IMX178 (color)
- Sensor Type: CMOS
- Sensor Size: 1/1.8" class
- Pixel Size: 2.4
- Still Resolution: 5MP
- Video Resolution: 1080p
- Frame Rate: 60fps @ 1920x1080 (HDMI), 25fps @ 1920x1080 (WiFi, SD)
- Sensitivity: 425mV @ 1/30s
- Connectivity: HDMI, WiFi
- Compatibility: Windows (32/64 bit) XP/Vista/7/8/10, Mac OSX, Linux
- Mounting Sizes: C-mount
- Power: 12V, 1A
