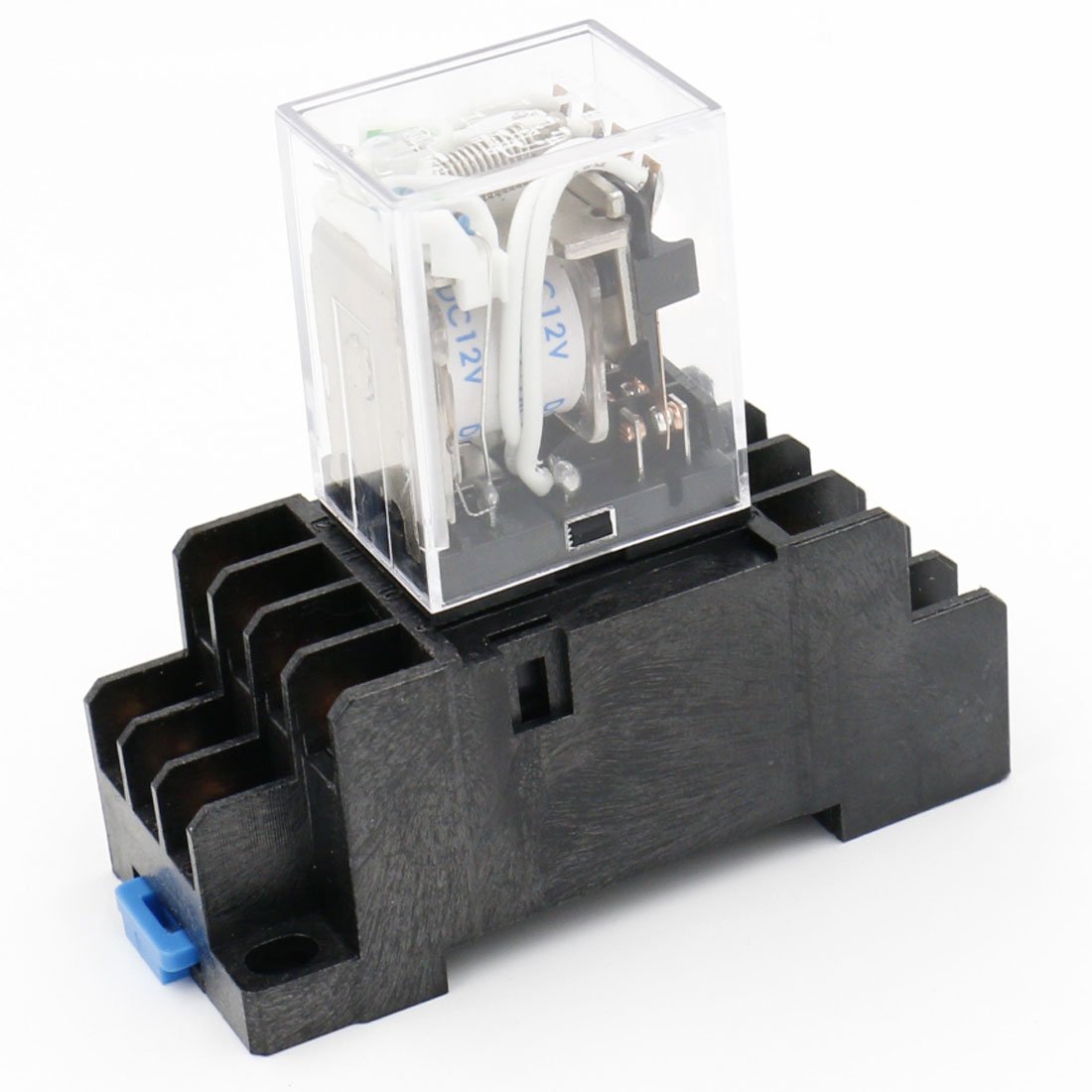

Baomain Electromagnetic Power Relay HH54PL DC 12V Coil 4PDT 14 Pins With DYF14A Base

hello everyone so today in this tutorial video what I'm going to show you is how to wire up either AC or DC 8 pink relay to the base so first most I have here AC relay this is a 240 volt AC relay and I also have a 24 volt DC relay and I also have one base so just take note you can use this base for both AC and DC relays so first I'm going to hook up the DC relay so for this what I have over here this is actually a AC DC converter so it converts 240 volt AC to 24 volt DC so I'm just going to plug this up ok you can see my AC DC converter is blocked and it's working so the switching that off for a while now let's go on to the relay configuration so if you look at both the AC and DC relays you can see they are both 8 pin what I'm using is a double TRO relay so if you look at the configuration of the relay this is the easy relate similar to the DC on the Left we have pins 1 5 9 and 13 on th
