Description
240W DIN-RAIL SWITCHING POWER SUPPLY 24 Volts 10 Amp s Specifications : • Universal AC input range • Protections: Short-circuit, Overload, Overvoltage, Over temperature • 100% Full load burn-in test • Soft-start circuit, limiting AC surge current • Input Voltage: Three-Phase 340-550VAC 47-63Hz, or 480-780VDC • Input Current Full load: 0.95A(400V) / 0.75A(500V) • Screw terminal torque: 9.0 lb.-in. max. • Size: 3.9 x 4.9" x 4.9" • Weight: 2.9 lbs. • 3-year warranty Detailed Specifications: • Primary Output Voltage (VDC): 24 • Output Current (A): 10 • Maximum Output Power (W): 240 • Family: DRT-240 • Input Voltage (VAC): 340 to 550 • Input Frequency: 47 to 63 • Maximum Input Current (A): 1.7 • Output Connector Type: Screw Terminal • Efficiency (%): 89 • Operating Temperature-Min (Cell): -20 • Operating Temperature-Max (Cell): 70 • Length (inch): 8.94 • Width (inch): 4.93 • Height (inch): 3.94 • Agency Approvals: UL/CUL/TUV/CB/CE • Color: Silver • Style: DIN".

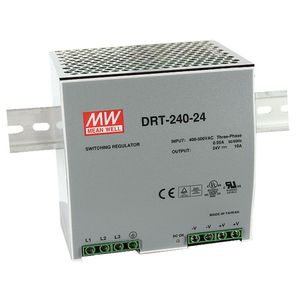

MEAN WELL DRT-240-24 AC-DC 3 Phase Industrial DIN-Rail Power Supply
Current Price
$93.56
Average
$87.41
Min Price
$76.15
Max Price
$95.32
Price dynamics
7%
Description
240W DIN-RAIL SWITCHING POWER SUPPLY 24 Volts 10 Amp s Specifications : • Universal AC input range • Protections: Short-circuit, Overload, Overvoltage, Over temperature • 100% Full load burn-in test • Soft-start circuit, limiting AC surge current • Input Voltage: Three-Phase 340-550VAC 47-63Hz, or 480-780VDC • Input Current Full load: 0.95A(400V) / 0.75A(500V) • Screw terminal torque: 9.0 lb.-in. max. • Size: 3.9 x 4.9" x 4.9" • Weight: 2.9 lbs. • 3-year warranty Detailed Specifications: • Primary Output Voltage (VDC): 24 • Output Current (A): 10 • Maximum Output Power (W): 240 • Family: DRT-240 • Input Voltage (VAC): 340 to 550 • Input Frequency: 47 to 63 • Maximum Input Current (A): 1.7 • Output Connector Type: Screw Terminal • Efficiency (%): 89 • Operating Temperature-Min (Cell): -20 • Operating Temperature-Max (Cell): 70 • Length (inch): 8.94 • Width (inch): 4.93 • Height (inch): 3.94 • Agency Approvals: UL/CUL/TUV/CB/CE • Color: Silver • Style: DIN".
Price will be lower
in next 2 weeks
in next 2 weeks
According to the data, price will be lower in next two weeks, so not waste your money and track better price!
