Description

Compatible with DSD256 and PCM384:
D10 is compatible with 16-32bit/44.1-384kHz and DSD64-DSD256 (Native).

XMOS XU208 + Customized Driver:
D10 use XMOS XU208 for USB interface and use customized driver which from Thesycon for better compatibility with high resolution audio file especially DSD native.

ESS ES9018K2M SABRE HIFI DAC:
D10 use ESS ES9018K2M to make THD+N as low as 0.0008%@1kHz.

Automatic power ON/OFF:
Although the USB port support power after PC has shutdown, D10 still will synchronously power on/off with PC.

Audio format and sampling rate indicator:
D10 can accurately indicate the audio format (PCM or DSD) and sampling rate of the playing music.
Orange LED is soft and not dazzling even at night.

Replaceable OP*:
D10 has OP amp socket, DIYer can change the OP amp to get different sound.
*D10's electrical parameters will change if use other OP.*

Connect to active speakers:
Connect D10 to your active speaker. D10 provide not only DSD and higher-specification PCM compatibility but also a better sound quality than your computer's built-in sound card or a regular DAC.

Line out:
THD+N @A-weighting ; <0.0008% at 1kHz
SNR @A-weighting ; 115dB at1 kHz
Frequency Response: 20Hz-20kHz(+0.1dB)
OutPut Level: 2Vrms @0dBFS
Noise @A-weighting: <4uVms
Crosstalk: -115dB @ 1kHz
Balance: 0.1dB
Output lmpedance: 100ohms
USB IN: 44.1kHz-384kHz/16Bit-32Bit﹜DSD64-DSD256(Dop﹜Native)
OPT/COAX OUTㄩ44.1kHz-192kHz/16Bit-24Bit

Contents list:
D10 x 1
USB cable x 1
User's manual x 1
Warranty card x 1
(Drivers and Manuals of TOPPING's product can be downloaded at www.tpdz.net)

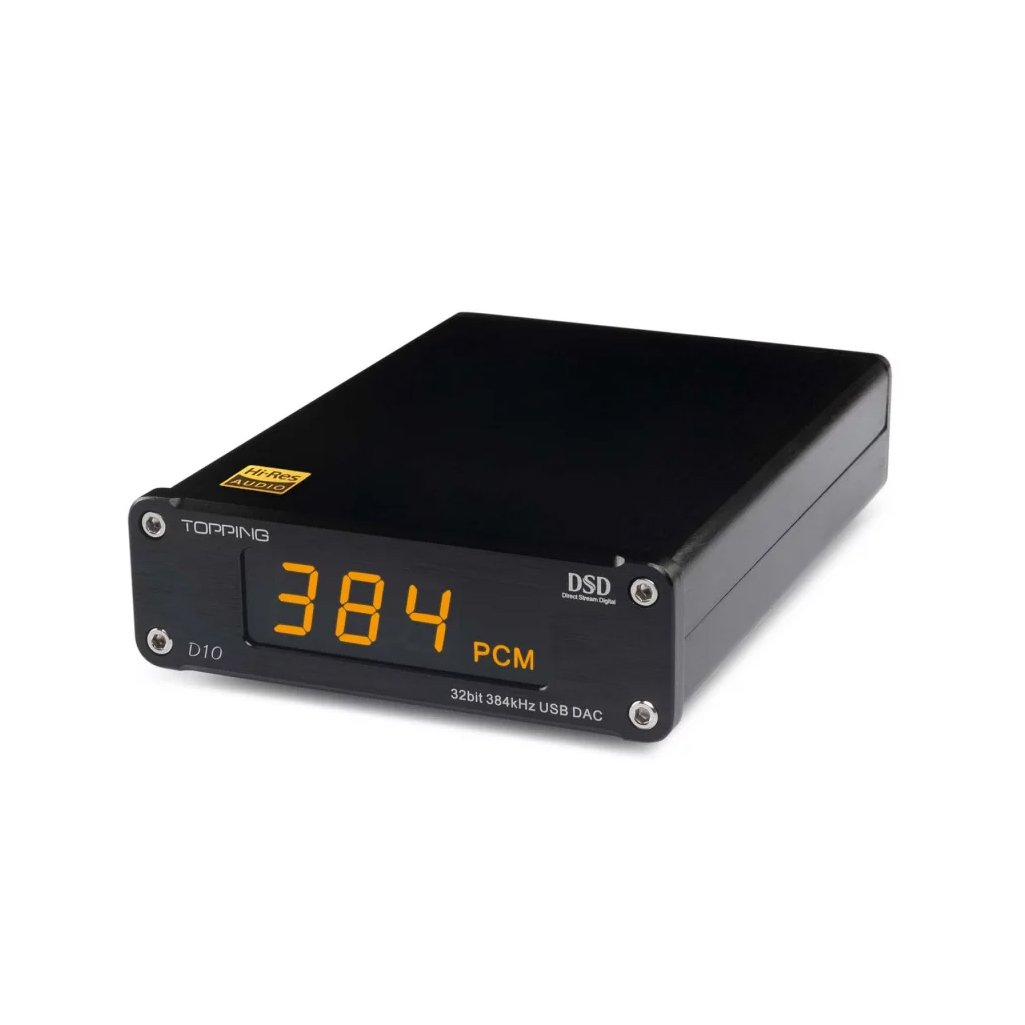

Basicest Topping MINI USB-DAC D10 CSS XMOS XU208 ES9018K2M Audio Decoder Amplifier (Black)
