Description

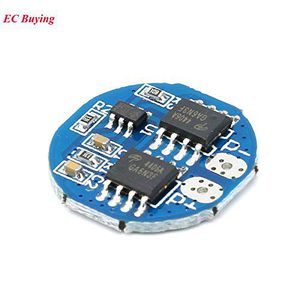

1Pcs 2S 18650 BMS Li-ion 7.4V 8.4V 5A Battery Charging Module bms 18650 Lithium Battery Protection Board PCB
Product Description
Product parameters
Model: HX-2S-A2
Overcharge voltage range: 4.25-4.35v ± 0.05v
Overpressure voltage range: 2.5-3.0v ± 0.05v
Charging voltage: 8.4V-9V
Upper limit operating current: 5A
Upper limit instantaneous current: 7A
Operating temperature: -40 --- +50 â
Storage conditions: -40-- +80 â
Quiescent current: less than 10uA
Internal resistance: less than 300mΩ
Size: 17.5 * 17.5 * 3.2mm
Effective life: more than 50,000 hours
Short circuit protection: can be protected, need to charge recovery
Note:
The battery will heat when using it, it means the battery does not apply , please don't keep using becuase the battery will be damaged soon.
The protection board can not be used for lithium iron phosphate battery, hernia lamp, hand drill battery pack, electric fish machine battery pack, electric bicycle battery pack, children's car battery, 775 (4A)motor, 1W fish eye LED light!
Connector:
B +: Connected to the battery positive
B- : Connected battery negative
MB : Connect the battery 1 to the connection point before battery 2
P + : Charge / discharge side positive (shared charge / discharge side)
P- : Connection / discharge terminal negative (charge / discharge side shared)
Item specifics:
Supply voltage: 7.4V/8.4V/5A
Type: Voltage Regulator
Operating temperature: -40-+50 Degrees Celsius
Package: TQFP
Dissipation power: 2S 18650 Lithium Battery Charging Module
Condition: New
Model number: HX-2S-A2
Is customized: Yes
Application: 2S 18650 BMS Li-ion 7.4V 8.4V 5A Battery Charging Module
Size : 17.5*17.5*3.2 MM
Storage conditions: -40- +80 degrees
Product Description
Product parameters
Model: HX-2S-A2
Overcharge voltage range: 4.25-4.35v ± 0.05v
Overpressure voltage range: 2.5-3.0v ± 0.05v
Charging voltage: 8.4V-9V
Upper limit operating current: 5A
Upper limit instantaneous current: 7A
Operating temperature: -40 --- +50 â
Storage conditions: -40-- +80 â
Quiescent current: less than 10uA
Internal resistance: less than 300mΩ
Size: 17.5 * 17.5 * 3.2mm
Effective life: more than 50,000 hours
Short circuit protection: can be protected, need to charge recovery
Note:
The battery will heat when using it, it means the battery does not apply , please don't keep using becuase the battery will be damaged soon.
The protection board can not be used for lithium iron phosphate battery, hernia lamp, hand drill battery pack, electric fish machine battery pack, electric bicycle battery pack, children's car battery, 775 (4A)motor, 1W fish eye LED light!
Connector:
B +: Connected to the battery positive
B- : Connected battery negative
MB : Connect the battery 1 to the connection point before battery 2
P + : Charge / discharge side positive (shared charge / discharge side)
P- : Connection / discharge terminal negative (charge / discharge side shared)
Item specifics:
Supply voltage: 7.4V/8.4V/5A
Type: Voltage Regulator
Operating temperature: -40-+50 Degrees Celsius
Package: TQFP
Dissipation power: 2S 18650 Lithium Battery Charging Module
Condition: New
Model number: HX-2S-A2
Is customized: Yes
Application: 2S 18650 BMS Li-ion 7.4V 8.4V 5A Battery Charging Module
Size : 17.5*17.5*3.2 MM
Storage conditions: -40- +80 degrees
