Condition: 100% Brand New

Model: TK14S40A-10M/V1

Single Overcharge Protection Voltage: 5.24±0.025V

Single Overcharge Release Voltage: 4.19±0.05V

Rated Charging Current: ≤40A

Single-Chip Over-Discharge Protection Voltage: 2.8±0.08V

Single-Chip Over-Discharge Release Voltage: 3.0±0.08V

Discharge Protection Current: 120±10A

With Or Without Short Circuit Protection: Yes

Short Circuit Protection Recovery Condition: Load-Disconnect

Equilibrium Voltage: 4.25V

Equilibrium Current: ≤26Ma

Internal Resistance: ≤3.5mΩ

Self-Consumption: ≤50uA

Weight: Approx. 108g / 3.8oz

Size: Approx. 60 * 90 * 10.1mm / 2.4 * 3.5 * 0.4in

Package List:

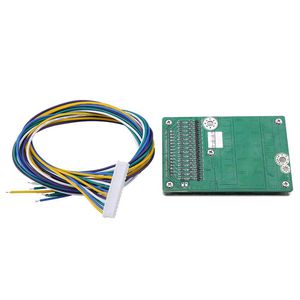

1 * Lithium Battery Protection Balance Board Module

1 * Connecting Cable

Note:

1. The difference between the split port and the same port: the split port: when charging and discharging, the positive and negative poles are separated; the same port: charging current is the same as the discharge current, and charging and discharging are in the same place.

2. Without balance and balance: balance: when the high-voltage battery is discharged with a resistor, waiting for the low-voltage battery to charge the voltage to achieve the same voltage and improve the performance of the whole battery.
