Description

The REF600M monoblock provides serious power, delivering the pure treble of Class A, the slam of the best Class D architectures, and the mid band presence that brings your music to life.

The Bel Canto Impedance Optimized Input Stage is a balanced high Common Mode Rejection, low output impedance driver that is critical to the amplifier's performance, ensuring that the refined dynamic qualities of the recording are preserved.

WBT NextGen Speaker Connectors The WBT NextGen connectors provide the best possible connection from the amplifier to the speaker cables. We choose them because they impart minimal sonic signature to the sound, remaining open and grain-free up throughout the audio frequency band.

Features:

Power Output 1% THD: 600W 4 ohms, 300W 8 ohms
Minimum Load: 2 ohms
Peak Output Current: 27 amperes
Frequency Response: +/-3 dB 0Hz-50KHz, all loads
THD+N: 0.003% 1W, 1KHz, 4 ohms
IMD (CCIF): 0.0003%, 1W, 14:15KHz, 4 ohms
Output noise: 35uVRMS A-weighted 10Hz-20KHz
Voltage gain: 27dB (internal switch select for 33dB)
Damping factor: >1000
Output Impedance at 100Hz: <8 milliohms
Dynamic Range: 121dB
Input Voltage for Max Output: 2.3Vrms at 27dB gain
Input connections: Single-ended RCA or balanced XLR
RCA input impedance: 100Kohms
Balanced input impedance: 200Kohms
Output connections: 1-set WBT Nextgen 5-way binding posts
Power On usage: 22W
Power Off usage: 0.0W
Internally Set Operating Voltages: 100-120VAC or 230-240VAC 50/60 Hz
Size: 8.5 x 3.5 x 12[inches], 216 x 88 x 305[mm] (WxHxD)
Weight: 15 lbs, 7 KG

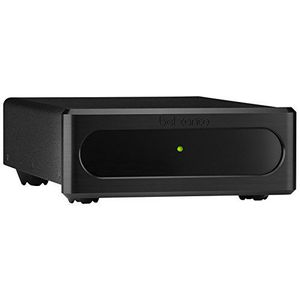

Bel Canto REF600M Monoblock Amplifier with Black Faceplate

Get price

Current Price

$2 495

Average

$2 495

Min Price

$2 495

Max Price

$2 495

Price dynamics

Description

Power Output 1% THD: 600W 4 ohms, 300W 8 ohms
Minimum Load: 2 ohms
Peak Output Current: 27 amperes
Frequency Response: +/-3 dB 0Hz-50KHz, all loads
THD+N: 0.003% 1W, 1KHz, 4 ohms
IMD (CCIF): 0.0003%, 1W, 14:15KHz, 4 ohms
Output noise: 35uVRMS A-weighted 10Hz-20KHz
Voltage gain: 27dB (internal switch select for 33dB)
Damping factor: >1000
Output Impedance at 100Hz: <8 milliohms
Dynamic Range: 121dB
Input Voltage for Max Output: 2.3Vrms at 27dB gain
Input connections: Single-ended RCA or balanced XLR
RCA input impedance: 100Kohms
Balanced input impedance: 200Kohms
Output connections: 1-set WBT Nextgen 5-way binding posts
Power On usage: 22W
Power Off usage: 0.0W
Internally Set Operating Voltages: 100-120VAC or 230-240VAC 50/60 Hz
Size: 8.5 x 3.5 x 12[inches], 216 x 88 x 305[mm] (WxHxD)
Weight: 15 lbs, 7 KG
