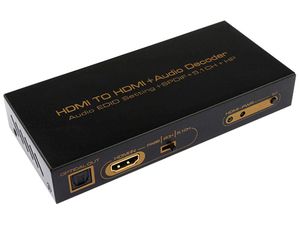

HDMI Multi-Channel LPCM 5.1 Dolby 5.1 AC3 DTS Audio Converter
This innovative HDMI 5.1 audio processor can decode the digital LPCM 5.1, Dolby 5.1, AC3 or DTS audio embedded in HDMI and output in analog surround format.

This unit can also extract Dolby Digital, AC-3, DTS 5.1 audio embedded in HDMI feed and output through its optical audio output.

Simultaneous Digital Analog Outputs
3 simultaneous digital/analog audio outputs available including 6-channel RCA outputs, 1 optical audio output and a 3.5mm headphone output.

Easy EDID Switch For Audio Output Mode
This unit is featured with EDID switch for manual selection of audio output mode:

• HDMI Pass Through Mode: Switch to Pass mode for the HDMI source to output audio according to what the TV or AV receiver can support.
• 2CH Mode: HDMI source will output 2-channel digital stereo sound so HDMI out, optical audio out, RCA out and headphone out will output with stereo L/R audio.
• 5.1CH Mode: HDMI source will output multi-channel audio such as LPCM 5.1, AC3, Dolby 5.1, DTS 5.1 so the HDMI out, optical audio out and RCA out will output in surround audio. And headphone out will be stereo only.

HDMI Multi-Channel Digital To Analog Audio Decoder
This HDMI audio converter decodes LPCM 5.1, Dolby AC3 or DTS 5.1 audio in HDMI into analog surround sound.

This HDMI audio extractor produces accurate duplicate of original sound track through its front left/right, surround left/right and subwoofer/center channel.

HDMI Dolby AC3 DTS To Optical Audio Converter
This audio processor can extract Dolby 5.1, AC3 or DTS 5.1 embedded in HDMI and output in digital optical format for further decoding. [Note]: For Dolby HD, DD Plus and DTS-HD Audio, such bitstream audio can only be passed through its HDMI output with no conversion/decoding.
