The gas detection instruments we designed are widely used in petrochemical, municipal environmental protection, coal mine, residential places, and other natural and wide ranges of industrial environments.
Technical Parameter:
Gas detected - Butane (Infrared Sensor C4H10 IR)
Measuring range - (0.00~5.00)%vol, (0~100)%vol
Resolution ratio - 0.01%vol
Sensor - Infrared Sensor, Made in UK
Sensor lifetime - ≥5 year
Response time - ≤45s(T90)
Alarms - Audible--buzzer with ≥75dB audible
Visible--flashing red LED, ≥20m visible
Alarm point - Fully adjustable
Continuous working time - >16h
Working current - < 1mA ( without backlight)
Working temperature - -25℃~+55℃, short time: -40℃~+55℃
Display - Liquid crystal display (LCD)
Battery model - PL123450, 3.7V/1500mA
Charging time - 4-5 hours
Dust and water resistance - IP65
Size & Weight - 105*54*32mm/450g
Included in the box:

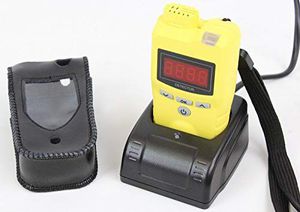

Charging adapter, calibration cap, calibration gas hose, hanging cord, leather case, manualBest Value Vacs Portable Butane (C4H10) Detector
