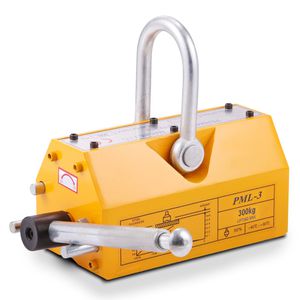

660LBS Steel Magnetic Lifter Heavy Duty Crane Hoist Lifting Magnet

This magnetic lifter is made with neodymium magnets which are used for lifting steel sheets, blocks, rods, cylinders and other magnetic materials. The handle on the magnet features a lock-on/lock-off mechanism that requires the operator to manually switch between the two states. The V slot on the bottom is ideal for flat or round loading surfaces. The U-loop shackle hook allows for the easy attachment of slings and low residual magnetism for rapid handling.

Features

N 42-45 Magnet material

Forging material and machining technical

Stainless steel handle and ring

Titanium alloys board

Baking paint

Double safety handle

Low residual magnetism for rapid handling

Note:

Thickness range of steel plate:20-40mm

Max length of steel plate: 700mm

The manual magnet crane is strict with steel plate thickness when lifting, if too thin, it will not be able to absorb the bearing steel plate. (For instance, If you want to lift a ton of steel with a ton of permanent magnet crane, the thickness of the steel plate should be at least 40mm.)

The adsorption capacity generated by same magnetic force released by permanent magnet crane when lifting round steel is about 30% of the lifting of the flat work piece, and the highest capacity does not exceed 50%.

Please clean the surface of the steel sheet before using it

Prohibit standing under the steel sheet when the steel sheet is lifted

Please do not control the handle when there is no any steel sheet under the magnetic lifter

There are more magnets in our magnetic lifter, so the magnetism is stronger

Package Content

1 x Magnetic lifter

1 x Hexagon wrench

1 x English manual
