Description

Specifications:

Input Voltage: DC 10~40V

Input Current: 0~8 A
Output Voltage: DC 0~38 V
Output Current: 0~6 A

Voltage Resolution: 0.01 V
Current Resolution: 0.001 A
Power Resolution: 0.001 W
Capacity Resolution: 0.001 AH

Max. Conversion Efficiency: 80%
Operating Temperature: -40~+ 85℃

Frequency: 150KHz

Size: 100 x 80mm / 3.93 x 3.15"

Display

Meaning

00.00

Voltage,00.00~38.00V

0.000

Current,0.000~6.000A

P.000,P0.00,P00.0,P000.

Power(W), e.g.:P123=0.123W,P1.23=1.23W,P12.3=12.3W,P102.=102W

C.000,C0.00,C00.0,C000.

Capacity,(AH), e.g.:C.123=0.123AH,C1.23 = 1.23AH,C12.3 = 12.3AH,C123.= 123AH

--0-

Function0

--1-

Function1

--2-

Function2

--y-

Function On

--n-

Function Off

SA.-* (*=0~9)

Save parameter to a position(0~9)

Lo.-* (*=0~9)

Recall parameter from a position(0~9)

----

Save Parameter

Function 0: Automatically output after power on.

Function 1: Save and recall parameters; display power and capacity.

Function 2: Automatically display parameters in turn after output.

On/Off(default off):

Long press "OK" button, then power on the module. It will display "--0-","--1-","--2-" in turn. Release "OK" button when it displays "--0-" to turn on/off function 0; release "OK" button when it displays "--1-" to turn on/off function 1; release "OK" button when it displays "--2-" to turn on/off function 2. ("--y-"=on, "--n-"=off)

Package Includes:

1 x Converter Module

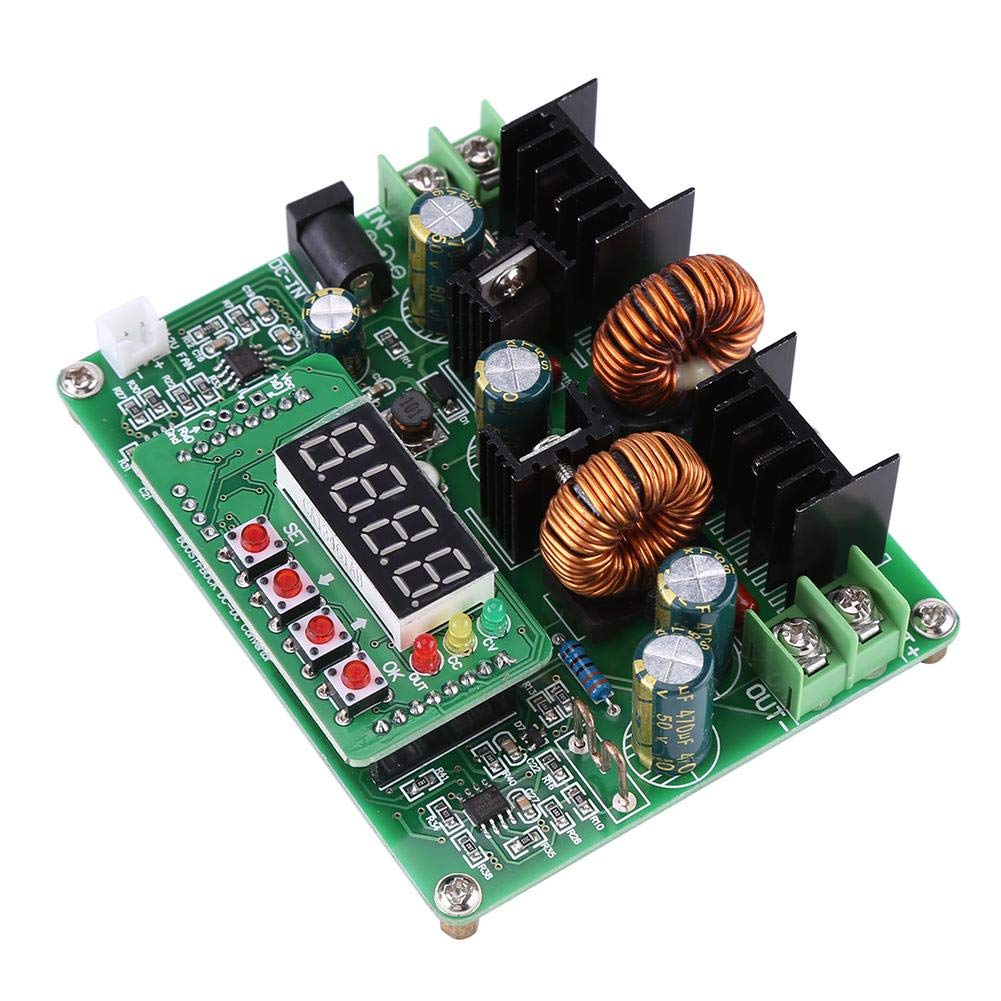

Boost Buck Converter, Dc Digital Module Boost Buck Converter Board 38V 6A

Get price

Current Price

$23.99

Average

$21.61

Min Price

$12.37

Max Price

$27.29

Price dynamics

10%

Description

Specifications:

Input Voltage: DC 10~40V

Input Current: 0~8 A
Output Voltage: DC 0~38 V
Output Current: 0~6 A

Voltage Resolution: 0.01 V
Current Resolution: 0.001 A
Power Resolution: 0.001 W
Capacity Resolution: 0.001 AH

Max. Conversion Efficiency: 80%
Operating Temperature: -40~+ 85℃

Frequency: 150KHz

Size: 100 x 80mm / 3.93 x 3.15"

Display

Meaning

00.00

Voltage,00.00~38.00V

0.000

Current,0.000~6.000A

P.000,P0.00,P00.0,P000.

Power(W), e.g.:P123=0.123W,P1.23=1.23W,P12.3=12.3W,P102.=102W

C.000,C0.00,C00.0,C000.

Capacity,(AH), e.g.:C.123=0.123AH,C1.23 = 1.23AH,C12.3 = 12.3AH,C123.= 123AH

--0-

Function0

--1-

Function1

--2-

Function2

--y-

Function On

--n-

Function Off

SA.-* (*=0~9)

Save parameter to a position(0~9)

Lo.-* (*=0~9)

Recall parameter from a position(0~9)

----

Save Parameter

Function 0: Automatically output after power on.

Function 1: Save and recall parameters; display power and capacity.

Function 2: Automatically display parameters in turn after output.

On/Off(default off):

Package Includes:

1 x Converter Module

According to the data, price will be lower in next two weeks, so not waste your money and track better price!

Product review & video

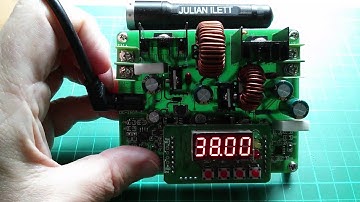

good morning all another day and another dc-to-dc converter well my motto is make videos about what you enjoy I certainly enjoyed playing with dc-to-dc converters now this is another Ming he I suppose I should turn it around this is the Ming he model D 3806 38 volts maximum output 6 amps and I particularly like this one because it's a buck boost or it's a boost buck so I can put my solar power battery input into this and it also has a DC 2.1 millimeter jack on it not all of them have that so I'm often using these sorts of things to convert from the terminal block to that Jack this one has it on there I mean it's just perfect so this one can take sort of 12 or 13 volts whatever it happens to be depending on whether it's sunny or not it's not sunny today and boost it up to a maximum of 38 I think this flat out or a minimum of well zero so what it can do is it can take my 12 or 13 volts an
