Description
Description:

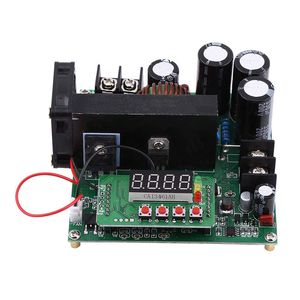

900W DC-DC boost converter module with digital display features small size, high power, high efficiency and stable performance.With high speed micro controller, this converter can accurately adjust output voltage and current. There are 10 groups built-in memory positions that allows storage or recall parameters, which is very convenient to use.4 digit display could show real-time voltage, current, power, capacity, etc.
Features:
Using advanced advanced microprocessor, the boost converter can accurately adjust output voltage and current.
The memory function supports storing 10 groups of parameters and can be freely stored or recalled.
High quality power component combined with peripheral precision op-amp CV and CC loop would highly improve the overall performance of module.
The converter supports input voltage stability and protection function and constant voltage and constant current regulation function.
4 digit display could show real-time voltage, current, power and capacity, and you can select automatic or manual display in turn.
There are output(OUT), constant voltage(CV), constant current(CC) indicator lights that shows real-time state.
You can select whether to output automatically or not after power on.
The voltage and current value can be saved by simply pressing one key.
Specifications:
Input Voltage: 8-60V
Output Voltage: 10V-120V
Output Power: 900W
Output Current: 0-15A
Operating Temperature: -40℃-+85℃
Frequency: 150KHz
Size: 110 x 96mm / 4.33 x 3.78"
Package Includes:
1 x Boost Converter
