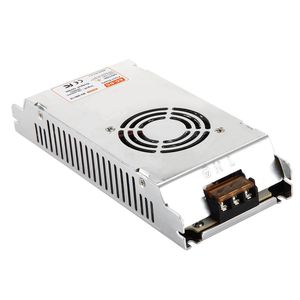

12V 30A DC Universal Regulated Switching Power Supply 360W for LED Strip Light, CCTV Camera, Radio, Automation, Computer Project
High light and new design!!! Compare to similar old type thick switching power supply it is widely input voltage 100-250VAC.
No need to switch 220VAC to 110VAC like old type power supply on side body.
Power Supply Product Features
Key Character Feature: Universal Constant Voltage Output Type Switching Power Supply
LED indicator for power on
100% full load burn-in test
High operating temperature up to 70℃
Auto on/off cooling fan
High efficiency /Low temperature when power supply works
Body Size: 195 x 86 x 37 mm/7.67 x 3.39 x 1.44 in(L x W x H)
Installing Screw Hole Diameter: 3.2 mm/ 0.13in
Power Supply Output
DC Voltage:12V
Rate Current:30A
Current Range:0-30A
Output Voltage ADJ. Range:11.4 - 12.6V
Power Supply Input
Voltage Range: 100-250VAC
Frequent Range: 47-63HZ
Efficiency (Typ.): 85%
Power applications
LED lighting or driving
CCTV camera monitoring system's power supply
Radio and broadcast power supply
Computer control project driving
Industrial automation control or driving
Power Supply Protection
Over-load protection
Over-voltage protection
Short circuit protection
Hiccup mode, recovers automatically after condition is removed.
Package Includes
1 x 12V LED Driver Transformer Power Supply
Note:
1.Please carefully confirm the wiring is correct, do not overload, can not easily touch the wiring port.
2. Non-Dimable,it needs one light dimmer connected to this switching power supply
3.Please keep your electrical cabinet ventilated
Warning: indoor use, Non-professional electrician, Non-removable installation!BVPOW 12V Power Supply 30A 360W DC Universal Regulated Transformers Adapter Power Converter for LED Strip Light CCTV Camera Radio Computer Project Automation
