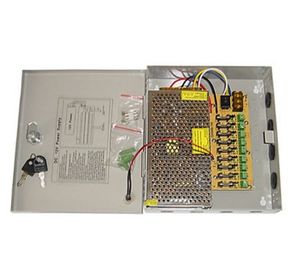

Description
This 9-Channel Power Supply Handles Up To 9 Cameras On 12V Dc Power, Allowing You To Consolidate Camera Power In A Central Location, Its Fused 9-Terminals Output Which Is Ideal For Multi-Camera Cctv System Installation.
Individually Fused Outputs, With Led Indicators.
Specification:
9-Channel 12V Dc 10A Regulated Power Supply For Cctv System
12V Dc Regulated
9 Outputs Individually Fused
Led Indicator
Fuse Each Channel
Input Voltage: Ac100-240V, 50/60Hz
Output Voltage: 12Vdc, 1A Per Channel For Camera
Single Output: 1A, Ptc (Short-Circuit Auto-Recovery)
Full-Load Average Output: 1.0A
Protection: Output Short Circuit Protection, Output Over Current Protection, Overvoltage Protection
Cooling Method: Air Natural Convection, Thermal Conductivity Metal Box. Radiation: Metal Box Shielding Electromagnetic Radiation, Anti-Interference
Power On/Off Switch; Spare Fuses Included ;
Easy Installation
Application: Digital And Electronic Products; Cctv Supervisory System; Cctv Monitoring Camera
Total Output Power: 120W Max.
Fuse Type: Glass Fuse
Operating Temperature -25°C ~ +60°C,20% ~ 90%Rh
Storage Temperature: -40°C ~ +70°C,10% ~ 95%Rh
Unit Dimension: 9.25X8.1X2.05Inch
Unit Net Weight: 1.2 Kg
BW 9CH Output 12 V DC CCTV Distributed Power Supply Box for Security Camera with Lock - White
Current Price
$29.99
Average
$29.99
Min Price
$29.99
Max Price
$29.99
Description
This 9-Channel Power Supply Handles Up To 9 Cameras On 12V Dc Power, Allowing You To Consolidate Camera Power In A Central Location, Its Fused 9-Terminals Output Which Is Ideal For Multi-Camera Cctv System Installation.
Individually Fused Outputs, With Led Indicators.
Specification:
9-Channel 12V Dc 10A Regulated Power Supply For Cctv System
12V Dc Regulated
9 Outputs Individually Fused
Led Indicator
Fuse Each Channel
Input Voltage: Ac100-240V, 50/60Hz
Output Voltage: 12Vdc, 1A Per Channel For Camera
Single Output: 1A, Ptc (Short-Circuit Auto-Recovery)
Full-Load Average Output: 1.0A
Protection: Output Short Circuit Protection, Output Over Current Protection, Overvoltage Protection
Cooling Method: Air Natural Convection, Thermal Conductivity Metal Box. Radiation: Metal Box Shielding Electromagnetic Radiation, Anti-Interference
Power On/Off Switch; Spare Fuses Included ;
Easy Installation
Application: Digital And Electronic Products; Cctv Supervisory System; Cctv Monitoring Camera
Total Output Power: 120W Max.
Fuse Type: Glass Fuse
Operating Temperature -25°C ~ +60°C,20% ~ 90%Rh
Storage Temperature: -40°C ~ +70°C,10% ~ 95%Rh
Unit Dimension: 9.25X8.1X2.05Inch
Unit Net Weight: 1.2 Kg
