Description:

- Automatic control products.

- High sensitivity.

- High reliability.

- Ultra-small.

- Ultra-low-voltage.

Specification:

- Material: PCB Circuit Board

- Operating Voltage Range: DC4.5-20V

- Static current:<60uA

- Output level: High 3.3V / Low 0V

- Trigger: repeatable trigger (default)

- Delay time: Default 8S + -30% (can be customized range of a few tenths - tens of minutes)

- PCB Dimensions: Approx. 10x23mm /

- Induction angle:<100 degree cone angle

- Induction distance: 3 meters

- Working temperature: -20 - +80 degrees

- Sensor Lens Dimensions: Diameter: 10mm (default)

Package Includes:

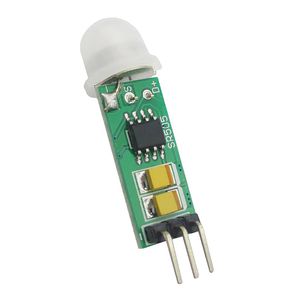

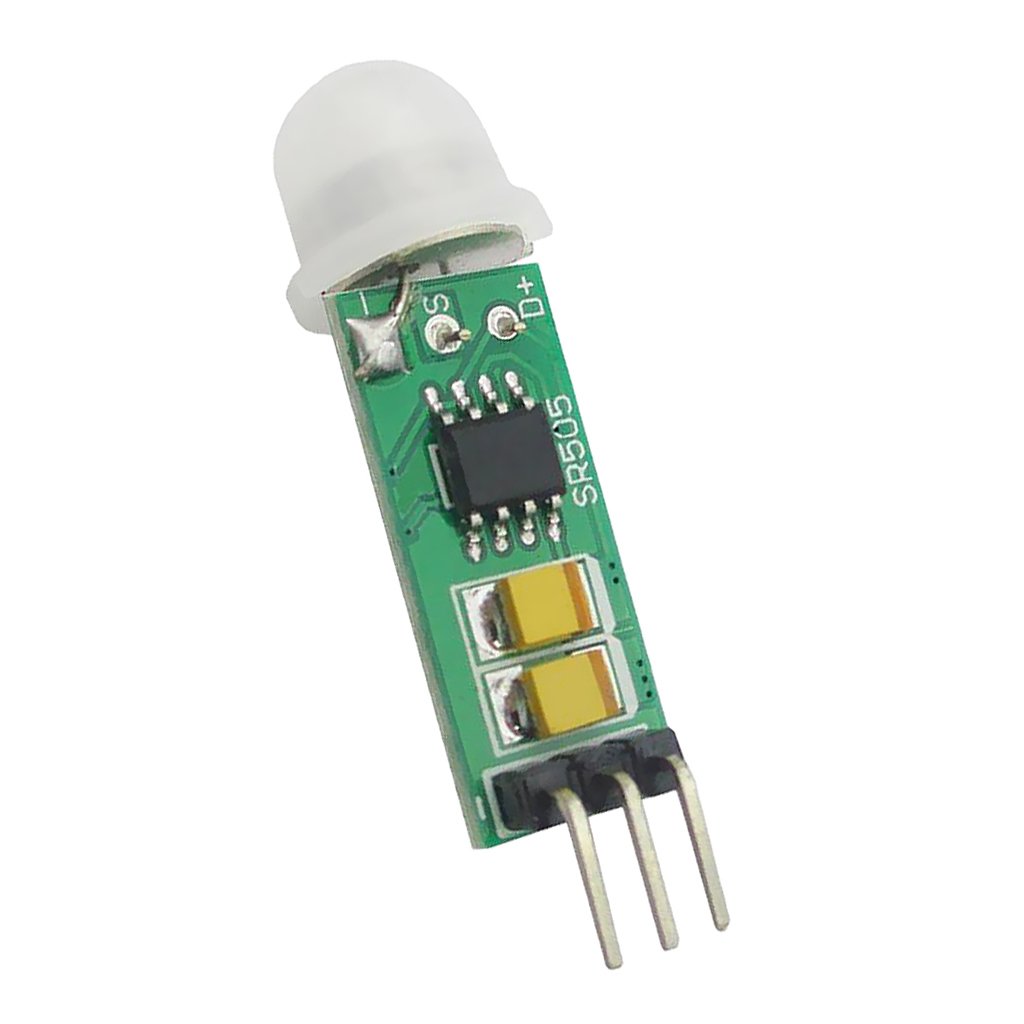

1 Piece Mini Infrared PIR Motion Sensor

Note:

Due to the light and screen setting difference, the item's color may be slightly different from the pictures. Please allow slight dimension difference due to different manual measurement.
