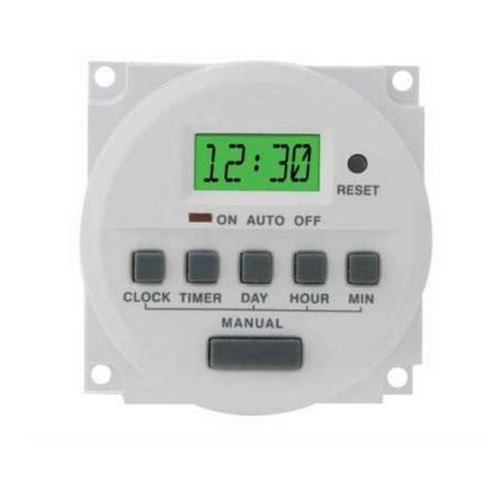

CAMDEN MARKETING CX24724 7DAY PROGRAMABLE TIMER 24VOLT AC/DC

okay here's the 12-volt timer that I have set up for my 12 volt winter freezer chest freezer on my boat and this is how you wire it up this is the source from the battery negative comes over here and you'll see that that's on the backside of that that says power negative positive and you split that you don't split it that you tap into it when you put the connector on and I'll come to that in a moment positive comes over and the deposited side of the feed okay this powers the switch switches on right now it's working I have it all programmed and I'll get to that at the moment as well then you have a jumper that comes from the feed from the battery over to the switch to one side of the switch okay and then you have the positive out that goes to the freezer on over to the plug and the negative out to the freezer over to the plug so here we go the feed negative you split it goes to the sort
