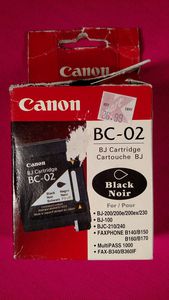

Canon Model BC-02 Black Cartridge

this is refilling method of BK i ate 445 be used for bc 01 vc 0 2 + bx 2 10 and cartridges with a supplied gimlet remove the whole cover at the side of the cartridge to create an ink injection Inlet open the cap of the ink container and connect the ink injection needle as shown in the figure tilt the cartridge slightly and insert the ink injection needle deep into the ink injection Inlet pull out the injection needle about 5 millimeters backward and then slowly inject 12 millimeters of ink by pressing the piston of the ink container for about 30 seconds then pull out the ink container insert the nozzle part of the cartridge into the refill clip and push the top of the cartridge all the way in until you hear it clicking into place while keeping your refill clip in upright position connect the supplied section syringe to the rubber hole on the bottom of the refill clip and slowly suck out
