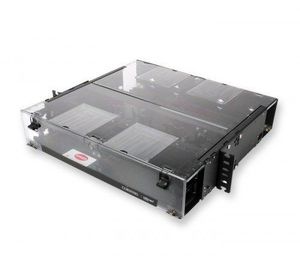

Corning Cable SystemsTM Closet Connector Housings (CCHs) provide interconnect or cross-connect capabilities between the outside plant, riser, or distribution cables, and the opto-electronics.

The units can be rack-mounted in 19-in (48 cm) or 23-in (58 cm) equipment racks (1.75-in EIA hole spacing) and occupies two rack spaces. This unit accepts up to 4 Corning Cable System CCH series connector panels.

Documentation labels are provided and units or components can be added as needed to construct a fiber distribution frame for any application.

CCH connector panels are not included and must be ordered separately.

Features:

• Ideal for field connectorization

• Suitable for loose tube, tight-buffered and optical fiber ribbon cables

• Mounting configurations include standard 4.5-in (11.4 cm) frontal projection, partially flush and flush mount

• Multiple locations for jumper egress

• Accepts CCH connector panels or modules

• Slide-out drawer for easy connector access

• Lock can be field-installed

• Meets requirements of ANSI/TIA/EIA-568A and 606

• Brackets included for rack mounting in 19-in or 23-in equipment racks

Optional items available:

HDWR-LOCK-KIT: Lock kit for front door of housing; contains one lock and two keys

FDC-CABLE-GRND: Armored cable grounding kit; contains armor grouding clip and ground strap

CJP-01U: Closet jumper management panel; provides jumper management in a 1.75 inch rack space

CJP-02U: Closet jumper management panel; provides jumper management in a 3.5 inch rack space
