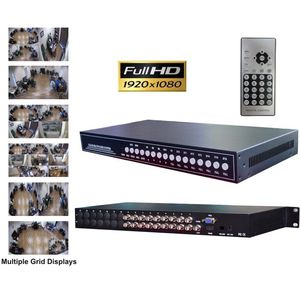

The VM-99509 is a 9 channel HD CCTV video multiplexer that supports AHD, HD-TVI, HDCVI, and analog security cameras. Each of the 9 BNC video inputs accepts any of the supported CCTV camera types. There is no need to have all of the cameras in the same format.

In addition to the 9 BNC video inputs, there are 9 BNC video loop outputs; one for each input. This is provided so that the video from each camera has the option to be connected to a second device.

The VM-99509 supports dual monitor outputs via the HDMI and VGA outputs. This means that the HDMI and VGA outputs can both be used at the same time. In addition, the Analog BNC video output can also be used with both the HDMI and VGA outputs connected.

The multiple video outputs allow the multiplexer to be connected to any HDMI, VGA, or BNC monitor. In order to display 720p or 1080p video resolution, either the HDMI or VGA output must be used. The BNC video output supports 720 x 480 resolution (NTSC) and 720 x 576 (PAL).

An infrared wireless remote control is included with the VM-99509 multiplexer, which can be used to control the screen views and to access the other screen display settings. This unit is enclosed in a 1U rack-mountable case and the rackmount kit is included.
