Description
Connector is ideal for any equipment for watertight, indoor / outdoor applications, such as outdoor electric tools or appliances, medical device, communications, Marine equipment, under water equipment, outdoor led lighting, outdoor LED panels, solar energy system, outdoor security cameras, transformer, control box, machines and equipment, packing machines, for data and power.
Cable specification: 2.5m㎡--4m㎡/14-12 AWG
Contact diameter × number: Φ2.7x3
Rated Current (A): 20A
Operating voltage (AC.V.rms): 500V
Contact resistance: <1mΩ
Insulation resistance: >500MΩ
Temperature rise: 20A contact temperature contact at 30℃, 25A contact temperature contact at40℃, 30A contact temperature contact at 50℃
Withstanding Voltage (AC.V) 1 minute: 2500V
Protection level: IP67
Durability: ≥500 mating/unmating cycle
Working temperature: -40℃~80℃
Connecting mode: 1/4 Mount connector
Assembly wire: Solder
Installation Hole: Φ21mm.
Installation Screw Hole:Φ3.2mm.

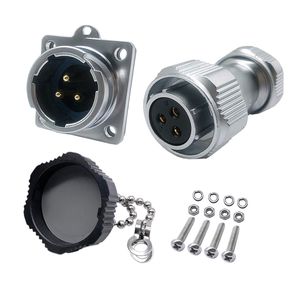

Package: 1 Pair x Plug Socket Connector, 4 x
Screw and Nut, 4 x Washer ,1 x Cap
NOTE:Prohibited to charged inserted.
CERRXIAN CNLINKO Power Metal Male Plug to Female Socket Rotation Lock Outdoor Waterproof Aviation Soldering Connector for AC DC Signal LED Lighting Equipments (Silver) (3 Pin)
Price is below average
Current Price
$21.88
Average
$22.19
Min Price
$19.89
Max Price
$23.99
Price dynamics
1%
Description
Connector is ideal for any equipment for watertight, indoor / outdoor applications, such as outdoor electric tools or appliances, medical device, communications, Marine equipment, under water equipment, outdoor led lighting, outdoor LED panels, solar energy system, outdoor security cameras, transformer, control box, machines and equipment, packing machines, for data and power.
Cable specification: 2.5m㎡--4m㎡/14-12 AWG
Contact diameter × number: Φ2.7x3
Rated Current (A): 20A
Operating voltage (AC.V.rms): 500V
Contact resistance: <1mΩ
Insulation resistance: >500MΩ
Temperature rise: 20A contact temperature contact at 30℃, 25A contact temperature contact at40℃, 30A contact temperature contact at 50℃
Withstanding Voltage (AC.V) 1 minute: 2500V
Protection level: IP67
Durability: ≥500 mating/unmating cycle
Working temperature: -40℃~80℃
Connecting mode: 1/4 Mount connector
Assembly wire: Solder
Installation Hole: Φ21mm.
Installation Screw Hole:Φ3.2mm.
Package: 1 Pair x Plug Socket Connector, 4 x
Screw and Nut, 4 x Washer ,1 x Cap
NOTE:Prohibited to charged inserted.
