Description
CNLINKO USA is the only authorized Amazon retailer for CNLINKO brand connector products, with complete warranty.
Selling Items Model Number:
Plug: DH-20-C03PE-01-001
Socket: DH-20-J03SX-01-001
Cable specification: 2.5m㎡--4m㎡/14-12 AWG
Diameter range: Φ8mm~Φ12mm
Contact diameter × number: Φ2.7x3
Rated Current (A): 20A
Operating voltage (AC.V.rms): 500V
Contact resistance <1mΩ
Temperature rise: 20A contact temperature below 30℃,25A ......40℃↓,30A......50℃↓
Withstanding Voltage (AC.V) 1 minute: 2500V
Insulation resistance: >500MΩ
Protection level: IP67
Durability: ≥500 times
Working temperature: -40℃~80℃
Connecting mode: 1/4 bayonet connect
Assembly wire: Solder
Housing, the insulating parts: High-performance engineering plastics
Hardware: Zinc Alloy (pearl hard chrome)
Copper needles: Copper alloy (gold-plated 4U)
Waterproof circle: Silica gel
Flammability rating: UL94-V0
Selling Items Model Number:
Plug: DH-20-C03PE-01-001
Socket: DH-20-J03SX-01-001
Cable specification: 2.5m㎡--4m㎡/14-12 AWG
Diameter range: Φ8mm~Φ12mm
Contact diameter × number: Φ2.7x3
Rated Current (A): 20A
Operating voltage (AC.V.rms): 500V
Contact resistance <1mΩ
Temperature rise: 20A contact temperature below 30℃,25A ......40℃↓,30A......50℃↓
Withstanding Voltage (AC.V) 1 minute: 2500V
Insulation resistance: >500MΩ
Protection level: IP67
Durability: ≥500 times
Working temperature: -40℃~80℃
Connecting mode: 1/4 bayonet connect
Assembly wire: Solder
Housing, the insulating parts: High-performance engineering plastics
Hardware: Zinc Alloy (pearl hard chrome)
Copper needles: Copper alloy (gold-plated 4U)
Waterproof circle: Silica gel
Flammability rating: UL94-V0

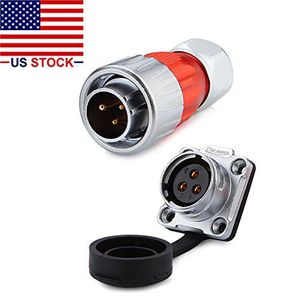

CNLINKO 3 Pin Power Industrial Circular Connector, Male Plug & Female Panel Mount Receptacles Socket Jack, Outdoor Waterproof IP67, AC DC, Zinc Alloy Metal Case Heavy Duty
Current Price
$26.39
Average
$25.16
Min Price
$24.39
Max Price
$26.39
Price dynamics
5%
Description
CNLINKO USA is the only authorized Amazon retailer for CNLINKO brand connector products, with complete warranty.
Selling Items Model Number:
Plug: DH-20-C03PE-01-001
Socket: DH-20-J03SX-01-001
Cable specification: 2.5m㎡--4m㎡/14-12 AWG
Diameter range: Φ8mm~Φ12mm
Contact diameter × number: Φ2.7x3
Rated Current (A): 20A
Operating voltage (AC.V.rms): 500V
Contact resistance <1mΩ
Temperature rise: 20A contact temperature below 30℃,25A ......40℃↓,30A......50℃↓
Withstanding Voltage (AC.V) 1 minute: 2500V
Insulation resistance: >500MΩ
Protection level: IP67
Durability: ≥500 times
Working temperature: -40℃~80℃
Connecting mode: 1/4 bayonet connect
Assembly wire: Solder
Housing, the insulating parts: High-performance engineering plastics
Hardware: Zinc Alloy (pearl hard chrome)
Copper needles: Copper alloy (gold-plated 4U)
Waterproof circle: Silica gel
Flammability rating: UL94-V0
Selling Items Model Number:
Plug: DH-20-C03PE-01-001
Socket: DH-20-J03SX-01-001
Cable specification: 2.5m㎡--4m㎡/14-12 AWG
Diameter range: Φ8mm~Φ12mm
Contact diameter × number: Φ2.7x3
Rated Current (A): 20A
Operating voltage (AC.V.rms): 500V
Contact resistance <1mΩ
Temperature rise: 20A contact temperature below 30℃,25A ......40℃↓,30A......50℃↓
Withstanding Voltage (AC.V) 1 minute: 2500V
Insulation resistance: >500MΩ
Protection level: IP67
Durability: ≥500 times
Working temperature: -40℃~80℃
Connecting mode: 1/4 bayonet connect
Assembly wire: Solder
Housing, the insulating parts: High-performance engineering plastics
Hardware: Zinc Alloy (pearl hard chrome)
Copper needles: Copper alloy (gold-plated 4U)
Waterproof circle: Silica gel
Flammability rating: UL94-V0
Price will be lower
in next 2 weeks
in next 2 weeks
According to the data, price will be lower in next two weeks, so not waste your money and track better price!
